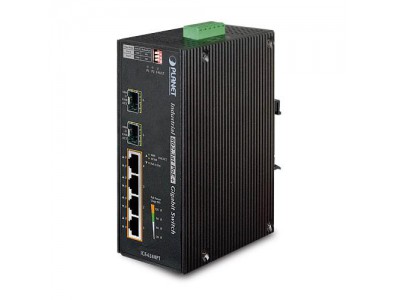

Long Distance High Power PoE and Gigabit Data Extension Solution The PLANET IGS-624HPT is an Industrial Gigabit 802.3at PoE+ Switch providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It provides 4-port 10/100/1000Base-T copper with 802.3af/at PoE injector and 2 extra 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGS-624HPT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.
High Power PoE for Security and Public Service Applications To fulfill the demand of High Power PoE for network applications, the IGS-624HPT provides 4 10/100/1000Mbps ports featuring both IEEE 802.3af and IEEE 802.3at Power over Ethernet Plus (PoE+) that combine up to 30-watt of power output and data per port over one Cat.5E / 6 Ethernet cable. With totally 120-watt PoE output capability on the whole system, the IGS-624HPT is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi-channel (802.11a / b / g / n) outdoor wireless LAN access points and other PoE network devices by providing double PoE power, rather than the current conventional 802.3af PoE.
Intelligent LED Indicator for Real-time PoE Usage The IGS-624HPT helps users to monitor current status of PoE power usage easily and efficiently by its advanced LED indication. Called “PoE Power Usage”, the front panel of the Industrial Gigabit PoE+ Switch has four orange LEDs indicating 30W, 60W, 90W and 120W of PoE power usage.
Convenient and Reliable Power System To facilitate the 802.3at High Power PoE usage with the commonly used 48V DC power input in transportation and industrial-level applications, the IGS-624HPT adopts 48V DC to 52V DC power boost technology to solve power source issue which is not required for special power supplies to achieve the level of High Power PoE+ output. To enhance the operation reliability and flexibility, the IGS-624HPT is equipped with two DC power input connectors for redundant power supply installation.
High Power Budget for PoE Extension With 30-watt PoE output capability, the IGS-624HPT can extend much longer distance by using PLANET PoE Extender for powering up the IEEE 802.3af PoE PD devices which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET PoE Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.
Environmentally Hardened Design The IGS-624HPT is equipped with the rugged IP30 metal case for easy deployment in heavy Industrial demanding environments. With IP30 industrial case protection, the IGS-624HPT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-624HPT can be placed in almost any difficult environment. The IGS-624HPT also allows either DIN rail or wall mounting for efficient use of cabinet space.
Fiber-Optical Link Capability Extend the Range of Network Deployment The two SFP slots are compatible with 100Base-FX or 1000Base-SX / LX / WDM through SFP (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optical uplink capability guarantees the throughput to all nodes hooked into the network and the Gigabit Ethernet distance can be extended from 550 meters (Multi-Mode fiber cable) up to 10/20/30/40/50/70/120 kilometers (Single-Mode fiber or WDM fiber).
Adjustable 6-Port Switch Mode or 4 + 2 Fiber Redundant Mode Via the built-in DIP switch, the IGS-624HPT can be configured as 6-port Ethernet switch or 4+2 fiber redundant mode. With the 6-port switch mode, the IGS-624HPT can operate in Store-and-Forward mechanism with high performance; on the other hand, when in the 4+2 fiber redundant mode, it provides rapid fiber redundancy of link for highly critical Ethernet applications. The redundant mode also supports auto-recovering function. If the destination port of a packet is link down, it will forward the packet to the other port of the backup pair.
Beheerfuncties
Switch type
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
Type basis-switching RJ-45 Ethernet-poorten
Aantal moduleslots SPF
Netwerk
Netwerkstandaard
10G support
Nee
Koperen ethernetbekabelingstechnologie
Full duplex
Een full-duplex-systeem staat tweewegcommunicatie toe en - in tegenstelling tot half-duplex, staat toe dat dit gelijktijdig gebeurt.
Ja
Auto MDI/MDI-X
Ja
Datastroombeheer
Ja
Data-uitwisseling
MAC-adrestabel
Het aantal IP-adressen dat het apparaat kan uitgeven.
Switchingcapaciteit
Throughput
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
Design
Rack-montage
De mogelijkheden om dit apparaat in een rek te plaatsen of monteren.
Nee
Stapelbaar
Nee
Kleur van het product
Materiaal behuizing
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Certificering
Energie
Vermogenstoevoer inclusief
Nee
Stroomverbruik (typisch)
Het vermogen van het apparaat, uitgedrukt in Watts. Typische waardes die fabrikanten geven zijn stroomverbruik indien uitgeschakeld, standby/suspended, typisch gebruik, maximaal gebruik.
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Power over Ethernet betekent dat het apparaat stroom kan verzenden of ontvangen via de netwerkkabel, zodat bepaalde aangesloten apparatuur geen verbinding met het stopcontact nodig heeft.
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
Temperatuur bij opslag
Relatieve vochtigheid in bedrijf (V-V)
Relatieve Luchtvochtigheid is de hoeveelheid waterdamp die de lucht bevat in verhouding (in procenten) tot de hoeveelheid water die de lucht bij die temperatuur maximaal zou kunnen bevatten (100%), koude lucht kan bijvoorbeeld minder water bevatten dan warme. Als de lucht afkoelt en de relatieve luchtvochtigheid daardoor boven de 100% komt, condenseert de waterdamp en krijgt men water.
Luchtvochtigheid bij opslag
Relatieve Luchtvochtigheid is de hoeveelheid waterdamp die de lucht bevat in verhouding (in procenten) tot de hoeveelheid water die de lucht bij die temperatuur maximaal zou kunnen bevatten (100%), koude lucht kan bijvoorbeeld minder water bevatten dan warme. Als de lucht afkoelt en de relatieve luchtvochtigheid daardoor boven de 100% komt, condenseert de waterdamp en krijgt men water.
Gewicht en omvang
Breedte
Diepte
Hoogte
Hoogte van het product
Gewicht
Gewicht van het product zonder verpakking (nettogewicht). Zo mogelijk wordt hier het nettogewicht van het product gegeven inclusief standaardaccessoires en -supplies. Fabrikanten stellen soms het gewicht van hun product te rooskleurig voor, door het basisgewicht te geven zonder standaardaccessoires en -supplies.
Logistieke gegevens
Code geharmoniseerd systeem (HS)
