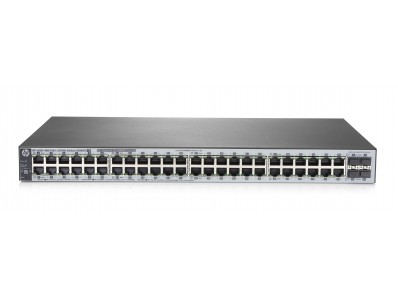

Hewlett Packard Enterprise 1820-48G-PoE+ (370W)

Name: hewlett-packard-enterprise-1820-48g-poe-370w
Brand: Hewlett Packard Enterprise
SKU: AF651A
Price: 2301.99 EUR
Availability: InStock

klik om te zoomen

Hewlett Packard Enterprise 1820-48G-PoE+ (370W) Vergelijk Pc-accessoires> Netwerk> Switches
Merk:	Hewlett Packard Enterprise
Artikelnr:	1250010
SKU:	AF651A;J9984A;J9984A#ABB;J9984A#B2C
EAN:	0888182299906;0888182299944;0888182299951;0888182299999;0888182300008;0888182300121;0888182748923;4053162835481;4053162930643;4056572693658;5054444406404;5054629707531;5704174079842;888182299906;888182299944;888182299999;888182300008
Productgroep:	Switches
Prijs:	€ 2.301,99
Voorraad:	Levertijd: 1 tot 4 werkdagen

Social media:

Beschrijving

Specificaties

Beoordeling

The HP 1820 Switch Series offers more choice and flexibility for smaller organizations that require ease of use and lower Total Cost of Ownership (TCO), while delivering better network performance. They are smart-managed, fixed configuration, Gigabit Ethernet Layer 2 switches in an easy-to-administer solution that have the latest energy-saving capabilities.

These switches are plug-and-play out of the box, where network operation can be fine-tuned through features available from a simple Web browser-based GUI, when needed.

Features

Easy-to-Use, Simple to Deploy and Manage
- The HP 1820 Switch Series features an intuitive Web management interface with an enhanced navigation pane for easy management of devices by non-technical users. The HP 1820 Switch Series is ideal for organizations that require simplicity.
- The series gives you flexibility and choice with a complete portfolio. You get six rack-mountable models including three non-Power over Ethernet (PoE) models. Some models include SFP ports for fiber connectivity.
- Customizable features include VLANs, Spanning Tree, Link aggregation trunking, and IGMP Snooping. All models include Rapid Spanning Tree Protocol (RSTP) and DSCP QoS policies.
- These switches support flexible installation options, including mounting on walls, under tables or on desk tops.
- Some models are of a fan-less design, making them quiet for office deployments.

Energy Efficiency and Lower TCO
- The HP 1820 Switch Series include the latest energy-savings capabilities, including Energy Efficient Ethernet (IEEE), idle-port power down and PoE Port Scheduler.
- The 8-port Gigabit Ethernet model can be powered by an upstream PoE switch for environments where no line power is available.
- All switches are covered by a Limited Lifetime Warranty 2.0 with limited 24x7 telephone support for the first three years.

Quality of Service (QoS)
- The HP 1820 Switch Series traffic prioritization provides time sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification. Packets are mapped to eight hardware queues for more effective throughput.
- Broadcast control allows limiting of broadcast traffic rate, to reduce unwanted network broadcast traffic.
- IEEE 802.11p/Q delivers data to devices based on the priority and type of traffic.

Beheerfuncties
Switch type	Managed
Switch-laag	L2
Quality of Service (QoS)	Ja
Web-gebaseerd management	Ja

Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten	48
Type basis-switching RJ-45 Ethernet-poorten	Gigabit Ethernet (10, 100, 1000
Aantal moduleslots SPF	4

Netwerk
Netwerkstandaard	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support	Nee
Koperen ethernetbekabelingstechnologie	10BASE-T, 100Base-T(X), 1000BASE-T
Port mirroring	Ja
Full duplex	Ja
Auto MDI/MDI-X	Ja
Datastroombeheer	Ja
Verbindingsaggregatie	Ja
Spanning tree protocol	Ja
Auto-sensing	Ja
VLAN=ondersteuning	Ja

Data-uitwisseling
MAC-adrestabel	16000 entries
Switchingcapaciteit	104 Gbit/s
Throughput	77 Mpps
Latentie (10-100 Mbps)	7 µs
Latentie (1 Gbps)	2 µs
Jumbo Frames ondersteuning	Ja
Packet buffergeheugen	2 MB

Beveiliging
DHCP-functies	DHCP client
IGMP snooping	Ja
SSH/SSL support	Ja

Design
Rack-montage	Ja
Stapelbaar	Ja
Vormfactor	1U
Kleur van het product	Grey

Prestatie
Type processor	Ja
Processormodel	ARM Cortex-A9
Frequentie van processor	400 MHz
Type geheugen	SDRAM
Intern geheugen	0.12 GB
Flash memory	0 GB

Energie
AC-ingangsspanning	100 - 240 V
AC-ingangsfrequentie	50/60 Hz
Stroomverbruik (typisch)	481 W

Power over Ethernet (PoE)
Power over Ethernet (PoE)	Ja
Totaal Power over Ethernet (PoE)-budget	370 W

Eisen aan de omgeving
Bedrijfstemperatuur (T-T)	0 - 40 °C
Temperatuur bij opslag	40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)	15 - 95 %
Luchtvochtigheid bij opslag	15 - 95 %

Gewicht en omvang
Breedte	442 mm
Diepte	323 mm
Hoogte Hoogte van het product	44 mm
Gewicht	4400 g

Duurzaamheid
Duurzaamheidscertificaten	EnergyStar

Verpakking
Snelstartgids	Ja
Gebruiksaanwijzing	Ja
