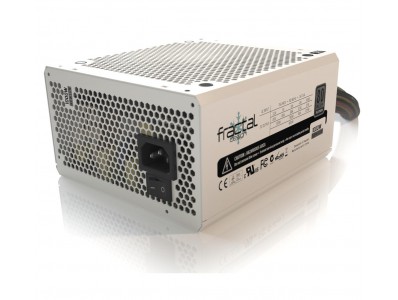

Fractal Design Newton R3 1000W, 1000 W, 90 - 264 V, 47 - 63 Hz, 135 mm, Actief, 20+4 pin ATX

klik om te zoomen

Fractal Design Newton R3 1000W, 1000 W, 90 - 264 V, 47 - 63 Hz, 135 mm, Actief, 20+4 pin ATX Vergelijk Componenten> Voeding/PSU
Merk:	Fractal Design
Artikelnr:	1094917
SKU:	FD-PSU-NT3W-1000W
EAN:	0817301010887;4054319112974;7350041080886;8173010108874
Productgroep:	Voeding/PSU
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

Fractal Design Newton R3 Series power supply units (PSUs) provide clean power efficiently and silently. The Newton R3 is the ultimate choice for demanding high-end gaming computers and ultra-quiet media PCs.

The visual appearance of Newton R3 Series PSUs is proof of Fractal Design's commitment to providing innovative computer components infused with stylish, elegant, contemporary Scandinavian design.

- 80PLUS® Platinum.
- Single, powerful 12V rail.
- SLI (800W and up) and CrossFireX Certified.
- Long-life ball-bearing fan.
- Modular cables.
- Japanese capacitors.
- Semi-passive fan.

80 PLUS® Platinum certified efficiency
Newton R3 Series PSUs meet the highest efficiency specifications currently available for consumer-grade power supplies. This efficiency produces both positive environmental impact, as well as reduces electricity bills. Additionally, because the Newton R3 Series PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels.

Excellent electrical performance
Newton R3 Series PSUs feature excellent DC voltage regulation and ripple suppression; they can deliver their full-rated wattage continuously even with an intake temperature as high as 50°C.

SLI and CrossFireX support
Newton R3 Series PSUs are tested and certified compatible with the latest graphics cards.

Modular Cables
With the exception of a few, all cables on the Newton series power supplies can be detached from the PSU unit. This reduces the clutter, assists with a clean installation and improves the airflow in the computer case.

Compliant with the latest standards
Newton R3 PSUs are compliant with the latest PSU standards: ATX12V 2.31 and EPS12V2.92.

Semi-passive Fan Operation
Newton R3 Series PSUs generate very little heat, they work well without active cooling in most environmental and loading conditions, especially in a well-ventilated case. Subsequently, Newton R3 Series PSUs are equipped with temperature sensors that only start the fan when required to keep the operating temperature down.

Single powerful 12V rail
To provide maximum support for modern components, Newton R3 Series PSUs deliver their full wattage from a single 12V rail.

Extra-long ATX12V cable
Newton R3 Series PSUs are equipped with a 700mm long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases.

Long-life Ball-bearing Fan
Newton R3 Series PSUs are equipped with ball-bearing fans, which provide the longest expected fan life available on the market.

Premium Japanese capacitors
Newton R3 Series PSUs are equipped with 100% high-end Japanese industrial capacitors for maximum reliability and longer life.

Energie
Totaal vermogen	1000 W
AC invoer voltage	90-264 V
AC invoer frequentie	47/63 Hz
Stroom	15 A
Maximale ingangsstroom (@110V)	12V, +3.3V, +5V, +5Vsb A
Gecombineerd vermogen (+3.3V)	100 W
Gecombineerd vermogen (+5V)	100 W
Max huidige output (+3.3V)	20 A
Max huidige output (+5V)	20 A
Max huidige output(+12V)	80, 0 A
Max huidige output (+5Vsb)	2 A

Poorten & interfaces
Motherboard power connector	20+4 pin ATX
Aantal SATA power connectors	12
Peripheral (Molex) power connectors (4-pin)	4
EPS power connector (8-pin)	Ja
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Ja
Floppy drive power connector	1
Bekabelingstype	Semi-Modular

Prestatie
Bedoeld voor	PC
Vormfactor van de voeding (PSU)	ATX
80 PLUS certificatie	80 PLUS Platinum
ATX version	2
EPS version	3
Mean time between failures (MTBF)	100000 h

Design
Kleur van het product	White
Type koeling	Active
Ventilator diameter	135 mm
Aantal ventilatoren	1
Aan/uitschakelaar	Ja

Gewicht en omvang
Breedte	150 mm
Diepte	165 mm
Hoogte Hoogte van het product	86 mm

Overige specificaties
Afmetingen verpakking (B x D x H)	445 x 235 x 145 mm
Power over Ethernet (PoE)	Nee
