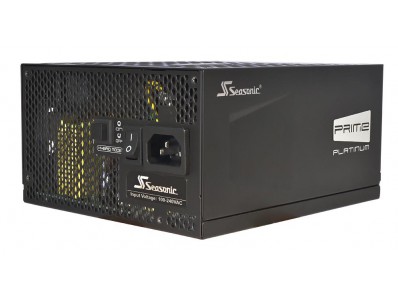

Seasonic SSR-650PD

klik om te zoomen

Seasonic SSR-650PD Vergelijk Componenten> Voeding/PSU
Merk:	Seasonic
Artikelnr:	1207450
SKU:	SSR-650PD;SSR650PD
EAN:	4711173873440
Productgroep:	Voeding/PSU
Bijzonderheden:
Downloads & links:	Brochure Handleiding
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Prijsverloop

Beoordeling

MTLR
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % (1 % for 1000 W and above) load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

Extended Hold-up Time (30 ms)
Improved circuit design and high-quality components have greatly increased the hold-up time measured under 100 % load, from an industry standard of 16 ms to above 30 ms. This substantial improvement means that even under unstable input current conditions the power supply will continue to output stable and precise current to ensure smooth operations. (The feature only applies to PRIME Titanium Series.)

Super Low Ripple Noise (20 mV)
Seasonic's continued commitment to excellent analog power supply design has suppressed ripple noise to fall well below the current industry average of 20 mV. (The feature only applies to PRIME Titanium Series.)

Premium Hybrid Fan Control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.

Power Supply Sound
The Seasonic PRIME Series is designed with very favorable level of acoustics and it uses carefully selected components and innovative circuit design to minimize sound output. Beyond our rigorous internal tests, the power supply also went through external testing with the most popular graphics cards to ensure that the sound at all loads would be kept at the lowest possible level. The chart compares the sound level of the Seasonic PRIME power supply to other ambient sounds.

Cable-free Connection Design
Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.

135 mm FDB Fan
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

How FDB works
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

Premium Hybrid Fan Control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.

Power Supply Sound
The Seasonic PRIME Series is designed with very favorable level of acoustics and it uses carefully selected components and innovative circuit design to minimize sound output. Beyond our rigorous internal tests, the power supply also went through external testing with the most popular graphics cards to ensure that the sound at all loads would be kept at the lowest possible level. The chart compares the sound level of the Seasonic PRIME power supply to other ambient sounds.

Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % (1 % for 1000 W and above) load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

Cable-free Connection Design
Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.

Multi-GPU Setup
Our power supplies are equipped with 6-pin and 8-pin PCI-E connectors to support all GPU platforms.

Gold Plated Connectors
Gold plating critical connector pins (motherboard, CPU and PCIe cables) extends the lifetime of the connectors and greatly increases the efficiency of current transmission.

Energie
Totaal vermogen	650 W
AC invoer voltage	100 - 240 V
AC invoer frequentie	50/60 Hz
Stroom	5.5 - 11 A
Gecombineerd vermogen (+3.3V)	100 W
Gecombineerd vermogen (+5V)	100 W
Gecombineerd vermogen (+12V)	648, 4 W
Gecombineerd vermogen(+5Vsb)	15 W
Max huidige output (+3.3V)	20 A
Max huidige output (+5V)	20 A
Max huidige output(+12V)	52, 0 A
Max huidige output (+5Vsb)	3 A
Efficientie	92 %
Stroomspanning bescherming	Over current, Over power, Over voltage, Overload, Short circuit

Poorten & interfaces
Motherboard power connector	20+4 pin ATX
Lengte stroomkabel moederbord	610 mm
Aantal SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Ja
Lengte CPU-stroomkabel	650 mm
ATX power connector (20+4 pin)	Ja
Floppy drive power connector	1
Lengte kabel diskettestation	101 mm
Bekabelingstype	modular
Monitor uitgang	Nee

Prestatie
Bedoeld voor	PC
Vormfactor van de voeding (PSU)	ATX
80 PLUS certificatie	80 PLUS Platinum
Mean time between failures (MTBF)	150000 h
Energy Star-certificaat	Ja
Certificering	cTUVus, TUV, CB, CCC, BSMI, EAC, WEEE, ErP Lot 6, REACH

Design
Kleur van het product	Black
Type koeling	Active
Ventilator diameter	135 mm
Aantal ventilatoren	1
Ventilator locatie	top
Belichting	Nee
Aan/uitschakelaar	Ja

Gewicht en omvang
Breedte	150 mm
Diepte	170 mm
Hoogte Hoogte van het product	86 mm

Verpakking
Type verpakking	Box

Technische details
Duurzaamheidscertificaten	RoHS

Overige specificaties
Garantiekaart	Ja
Gebruikershandleiding	Ja
