Seasonic Focus Gold 550

klik om te zoomen

Seasonic Focus Gold 550 Vergelijk Componenten> Voeding/PSU
Merk:	Seasonic
Artikelnr:	1248962
SKU:	SSR-550FM
EAN:	4711173873389
Productgroep:	Voeding/PSU
Bijzonderheden:
Downloads & links:	Brochure
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Prijsverloop

Beoordeling

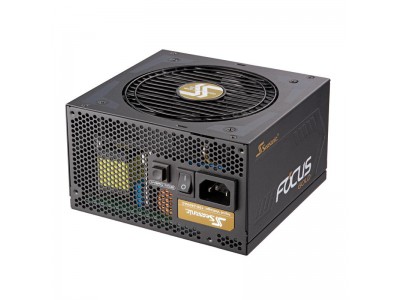

FOCUS 550 Gold
The FOCUS Gold power supplies are the ideal choice for people who do not want to break the bank, and yet seek the solid power supplies with great reliability and efficiency. The semi-modular cabling design provides the most basic connections while allowing flexibility on the peripherals. The high quality 120 mm Fluid Dynamic Bearing (FDB) fans are very quiet and proven to be very stable over the long run. The 120 mm FDB fan inside is regulated by the Seasonic S2FC fan control, which optimizes the fan speed according to the needs of the system.

80 PLUS®Gold
Seasonic was the forerunner of creating the very first 80 PLUS® Gold certified power supply on the market and since that time it has built a very popular Gold series lineup that covers a full power range of power supplies with impeccable performance and efficiency. The highly efficient 80 PLUS® Gold certification guarantees greater than 87 %, 90 % and 87 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. The clear advantage of buying a power supply with 80 PLUS® Gold rating is the fact that the less energy gets wasted during power conversion, the lower the operating costs will be for the user.

Compact Size
This ultra-high power density, small footprint (140 mm depth) power supply is an ideal choice for all, especially compact ATX cases.

S2FC
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

Tight Voltage Regulation
Seasonic’s advanced design is to improve load regulation which reduces voltage variations to provide smooth and stable operations.

DC to DC Converter Design
The step down DC to DC converter design allows the power supply to be able to serve system components with various voltage needs. Not only is it a flexible, clean voltage conversion solution but it also maximizes the 12 V DC rail output, delivers superior dynamic response and , ultimately, provides for greater system stability.

105 °C Japanese Capacitor
Premium quality Japanese capacitors with 105 °C rating increase overall reliability and extend product life.

Modular Cable Design
Some cables are permanently attached to the power supply (most of the time the 24-pin and the 8-pin ATX power cables) and the rest of the cables can be used to connect the rest of the available components.

- ATX 12 V
- Semi-modular
- 80 PLUS Gold Certified
- 7 Years Warranty
- Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)

Energie
Totaal vermogen	550 W
AC invoer voltage	100 - 240 V
AC invoer frequentie	50/60 Hz
Stroom	4 - 8 A
Gecombineerd vermogen (+3.3V)	100 W
Gecombineerd vermogen (+5V)	100 W
Gecombineerd vermogen (+12V)	540, 4 W
Gecombineerd vermogen(+5Vsb)	15 W
Max huidige output (+3.3V)	20 A
Max huidige output (+5V)	20 A
Max huidige output(+12V)	45, 0 A
Max huidige output (+5Vsb)	3 A
Stroomspanning bescherming	Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage

Poorten & interfaces
Motherboard power connector	20+4 pin ATX
Lengte stroomkabel moederbord	610 mm
Aantal SATA power connectors	6
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	2
CPU power connector (4+4 pin)	Ja
Lengte CPU-stroomkabel	650 mm
ATX power connector (20+4 pin)	Ja
Aansluiting voor diskettestation	Ja
Floppy drive power connector	1
Lengte kabel diskettestation	101 mm
Bekabelingstype	Semi-Modular

Prestatie
Bedoeld voor	PC
Vormfactor van de voeding (PSU)	ATX
80 PLUS certificatie	80 PLUS Gold
Bearing technologie	FDB
Mean time between failures (MTBF)	100000 h
Energy Star-certificaat	Ja
Veiligheid	cTUVus, TUV, CB, CCC, BSMI, EAC, RCM
Certificering	WEEE, ErP Lot6, REACH

Design
Kleur van het product	Black
Type koeling	Active
Ventilator diameter	120 mm
Aantal ventilatoren	1
Ventilator locatie	top
Aan/uitschakelaar	Ja

Eisen aan de omgeving
Temperatuur, in bedrijf	0 - 50 °C

Gewicht en omvang
Breedte	150 mm
Diepte	140 mm
Hoogte Hoogte van het product	86 mm

Verpakking
Meegeleverde kabels	AC
Opbergtas voor kabel inbegrepen	Ja
Aantal riemen	3
Behuizingsticker inbegrepen	Ja
Type verpakking	Box

Technische details
Duurzaamheidscertificaten	RoHS

Overige specificaties
Inclusief schroeven	Ja
Aantal schroeven	4
Kabelbinders inbegrepen	Ja
Garantiekaart	Ja
Gebruikershandleiding	Ja
