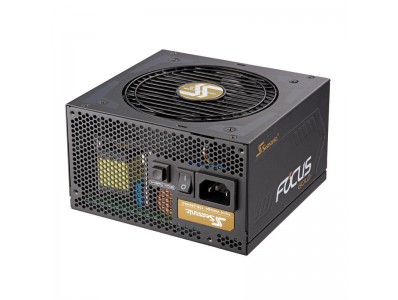

FOCUS 750 Gold The FOCUS Gold power supplies are the ideal choice for people who do not want to break the bank, and yet seek the solid power supplies with great reliability and efficiency. The semi-modular cabling design provides the most basic connections while allowing flexibility on the peripherals. The high quality 120 mm Fluid Dynamic Bearing (FDB) fans are very quiet and proven to be very stable over the long run. The 120 mm FDB fan inside is regulated by the Seasonic S2FC fan control, which optimizes the fan speed according to the needs of the system.
80 PLUS®Gold Seasonic was the forerunner of creating the very first 80 PLUS® Gold certified power supply on the market and since that time it has built a very popular Gold series lineup that covers a full power range of power supplies with impeccable performance and efficiency. The highly efficient 80 PLUS® Gold certification guarantees greater than 87 %, 90 % and 87 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. The clear advantage of buying a power supply with 80 PLUS® Gold rating is the fact that the less energy gets wasted during power conversion, the lower the operating costs will be for the user.
Compact Size This ultra-high power density, small footprint (140 mm depth) power supply is an ideal choice for all, especially compact ATX cases.
S2FC The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
Fluid Dynamic Fan Bearing High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
Tight Voltage Regulation Seasonic’s advanced design is to improve load regulation which reduces voltage variations to provide smooth and stable operations.
DC to DC Converter Design The step down DC to DC converter design allows the power supply to be able to serve system components with various voltage needs. Not only is it a flexible, clean voltage conversion solution but it also maximizes the 12 V DC rail output, delivers superior dynamic response and , ultimately, provides for greater system stability.
105 °C Japanese Capacitor Premium quality Japanese capacitors with 105 °C rating increase overall reliability and extend product life.
Modular Cable Design Some cables are permanently attached to the power supply (most of the time the 24-pin and the 8-pin ATX power cables) and the rest of the cables can be used to connect the rest of the available components.
- ATX 12 V - Semi-modular - 80 PLUS Gold Certified - 7 Years Warranty - Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
Energie
Totaal vermogen
AC-ingangsspanning
AC-ingangsfrequentie
Stroom
Gecombineerd vermogen (+3.3V)
Gecombineerd vermogen (+5V)
Gecombineerd vermogen (+12V)
Gecombineerd vermogen(+5Vsb)
Max huidige output (+3.3V)
Max huidige output (+5V)
Max huidige output(+12V)
Max huidige output (+5Vsb)
Stroomspanning bescherming
Poorten & interfaces
Motherboard power connector
Lengte stroomkabel moederbord
Aantal SATA power connectors
Peripheral (Molex) power connectors (4-pin)
PCI Express power connectors (6+2 pin)
CPU power connector (4+4 pin)
Ja
Lengte CPU-stroomkabel
ATX power connector (20+4 pin)
Ja
Aansluiting voor diskettestation
Ja
Floppy drive power connector
Lengte kabel diskettestation
Bekabelingstype
Prestatie
Bedoeld voor
Vormfactor van de voeding (PSU)
80 PLUS certificatie
Bearing technologie
Mean time between failures (MTBF)
Dit is een gemiddelde, dat wil zeggen dat sommige apparaten korter en andere langer dan deze tijd mee zullen gaan.
Veiligheid
List of regulatory standards for all countries in which this product has been certified
Certificering
Design
Kleur van het product
Type koeling
Ventilator diameter
Aantal ventilatoren
Ventilator locatie
Aan/uitschakelaar
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
Inhoud van de verpakking
Meegeleverde kabels
Gewicht en omvang
Breedte
Diepte
Hoogte
Hoogte van het product
Verpakking
Opbergtas voor kabel inbegrepen
Ja
Aantal riemen
Behuizingsticker inbegrepen
Ja
Gebruikershandleiding
Ja
Type verpakking
Technische details
Duurzaamheidscertificaten
Overige specificaties
Inclusief schroeven
Ja
Aantal schroeven
Kabelbinders inbegrepen
Ja
Garantiekaart
Ja
