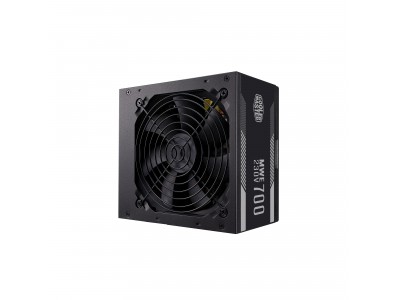

Cooler Master MWE 700 White 230V - V2

klik om te zoomen

Cooler Master MWE 700 White 230V - V2 Vergelijk Componenten> Voeding/PSU
Merk:	Cooler Master
Artikelnr:	1267536
SKU:	MPE-7001-ACABW;MPE-7001-ACABW-EU;MPE-7001-ACABW-NL
EAN:	4719512083055;4719512083147
Productgroep:	Voeding/PSU
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

POWER UP
The MWE White offers a simple, reliable way to power your system safely and efficiently at a low cost. The 80 PLUS White efficiency rating, DC-to-DC + LLC circuit design, single +12V rail, active PFC, and temperature sensitive HDB fan offer a power supply unit that stays true to its original purpose. This PSU will handle all your core computing needs with none of the hassles or challenges of additional specialty features, software synchronization, or other bells and whistles. Just plug it into your system and get to work. For a great core computing experience, you can’t go wrong with the MWE White.

80 PLUS STANDARD 230V EU CERTIFIED
It’s important to understand what efficiency is and what the ratings actually mean. The efficiency rating indicates how much power is retained and/or lost when transferring it from the wall to your components. It does not indicate the overall quality of the PSU. A PSU doesn’t need an 80 PLUS Gold rating to be safe and reliable. And a PSU with an 80 PLUS Gold rating isn’t necessarily either of those things. The MWE White guarantees a typical efficiency of 85% while being both safe and reliable.

120MM HDB FAN
The constant struggle between cooling and noise is as old as the consumer PC industry itself. Keeping your components cool without having to hear about it while you work is still one of the greatest challenges for all fan based cooling technologies. The MWE White’s solution to this problem is a thermally sensitive 120mm HDB fan. It spins based on the system’s temperature, constantly adjusting to keep your PSU running smoothly and safely with the minimum amount of noise required.

SINGLE +12V RAIL
Getting power from the wall to the PSU and then to your components is a tricky situation. The power comes in one voltage level, but your components need a different one. That power has to first be transferred to/through a converter in order to make it safe for your parts to use without overloading. The lines/rails used to initially move power from the wall to the converter need to be reliable and consistent to ensure your system’s overall performance. That’s why the MWE White only uses one +12V rail for this process. This way all the components in your system are constantly fed the same power from the same source in order to guarantee consistency between all connections.

DC-TO-DC CIRCUIT DESIGN
Power comes in multiple voltage levels. The wall delivers power in one voltage level but your components each need a specific voltage to operate properly. The process of converting raw power from the wall to the multiple voltage levels your components need requires special components to complete this process quickly, efficiently, and safely. The MWE White’s DC-to-DC + LLC technology was painstakingly crafted to accomplish this goal. The Dual Forward circuit layout has been designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS efficiency, and reduced risk to your connected components.

SILENT MODE
The MWE White platform has a built in silent mode for low wattage operation. While your system is in standby mode or running at lower loads, the fan will not spin. This ensures complete silence during casual operation. Once your system passes the load threshold, the 120mm HDB fan will activate automatically and cool the unit appropriately based on system use and needs.

FLAT BLACK CABLES
For many PC Builders with aesthetics in mind, cabling can be on of the most troublesome parts of assembling a PC. Cables can be confusing, too short or too long, and they almost never look good. The MWE White uses flat and flexible black cables to help deal with these problems. These cables are more discrete and flexible, making them easier to implement into your system while taking up less space. This is especially useful for smaller cases and preserving airflow.

- 80 PLUS Standard 230V EU Certified
- 120mm HDB Fan
- DC-to-DC Technology
- Single +12V Rail
- Silent Mode
- Flat Black Cables

Energie
Totaal vermogen	700 W
AC-ingangsspanning	200 - 240 V
AC-ingangsfrequentie	50/60 Hz
Stroom	6 A
Power Factor Correctie (PFC) type	Active
Gecombineerd vermogen (+3.3V)	120 W
Gecombineerd vermogen (+5V)	120 W
Gecombineerd vermogen (+12V)	696, 4 W
Gecombineerd vermogen(+5Vsb)	15 W
Max huidige output (+3.3V)	20 A
Max huidige output (+5V)	20 A
Max huidige output(+12V)	58, 0 A
Max huidige output (+5Vsb)	3 A
Efficientie	85 %
Houd-tijd	14 ms
Vertragingsbereik Power Good-signaal	100 - 500 ms
Stroomspanning bescherming	Over power, Over voltage, Overheating, Short circuit, Under voltage

Poorten & interfaces
Motherboard power connector	24-pin ATX
Lengte stroomkabel moederbord	500 mm
Aantal SATA power connectors	6
Lengte SATA-stroomkabel	400, 550, 700 mm
Peripheral (Molex) power connectors (4-pin)	3
Lengte stroomkabel randapparaat (Molex)	400, 550, 700 mm
EPS power connector (8-pin)	Ja
PCI Express power connectors (6+2 pin)	4
ATX Power connector (24-pin)	Ja
Bekabelingstype	Non-Modular

Prestatie
Bedoeld voor	PC
Vormfactor van de voeding (PSU)	ATX
80 PLUS certificatie	80 PLUS
ATX version	3
Stille modus	Ja
Bearing technologie	HDB
Mean time between failures (MTBF)	100000 h
Certificering	ErP 2014 Lot 3, CCC, CE, TÜV Rh, EAC, RCM, cTUVus, FCC, BSMI, KC, CB

Design
Kleur van het product	Black
Type koeling	Active
Ventilator diameter	120 mm
Aantal ventilatoren	1
Ventilator snelheid	0 - 2400 RPM

Eisen aan de omgeving
Bedrijfstemperatuur (T-T)	0 - 40 °C

Gewicht en omvang
Breedte	140 mm
Diepte	86 mm
Hoogte Hoogte van het product	150 mm
Gewicht	1498 g

Verpakking
Breedte verpakking	245 mm
Diepte verpakking	190 mm
Hoogte verpakking	110 mm
Gewicht verpakking	1896 g

Logistieke gegevens
Producten per pallet	32 pcs
(Buitenste) hoofdverpakking breedte	5 - 70 mm
(Buitenste) hoofdverpakking lengte	260 mm
(Buitenste) hoofdverpakking hoogte	215 mm
Code geharmoniseerd systeem (HS)	84733020
Hoeveelheid per (buitenste) hoofdverpakking	5 pcs

Overige specificaties
Geluidsniveau (stille modus, <30%)	11 dB
Geluidsniveau (stille modus, 50%)	20 dB
Geluidsniveau (volle belastingmode, 100%)	41 dB
