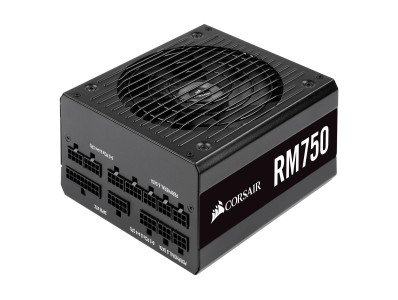

Corsair RM750 PSU PC voeding

klik om te zoomen

Corsair RM750 PSU PC voeding Vergelijk Componenten> Voeding/PSU
Artikelnr:	1303086
SKU:	CP-9020195-EU
EAN:	0840006604167;840006604167
Productgroep:	Voeding/PSU
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Prijsverloop

Ook meegekocht

Beoordeling

CORSAIR RM Series fully modular power supplies deliver consistent 80 PLUS Gold efficient power to your PC, with virtually silent operation.

READY FOR MODERN STANDBY
Modern Standby is a upcoming feature for Windows 10 that vastly improves your PC's sleep and wake functionality. The technology allows your system to wake from sleep more than twice as fast, as well as maintain a network connection during sleep to continue downloading updates and receive emails and notifications – just like your phone. Best of all, it does this with less overall power consumption.

To make use of Modern Standby, a compatible motherboard and CPU are also required.

80 PLUS GOLD CERTIFIED
The RM Series delivers power at up to 90% efficiency, lowering energy consumption, noise, temperatures, and your power bill.

105°C-RATED CAPACITORS
Using industrial-grade electrolytic capacitors, RM Series power supplies offer the unwavering power and long-term reliability you demand from a CORSAIR power supply.

ZERO RPM FAN MODE
The RM Series' cooling fan doesn't spin until you need it, for near-silent operation at low and medium loads.

TUNED FOR LOW NOISE OPERATION
A 135mm rifle bearing fan with a specially calculated fan curve ensures that fan noise is kept to a minimum, even at full load. When at low and medium loads, the fan stops spinning entirely until it's needed, resulting in virtually silent operation.

COMPACT SIZE
A 160mm-long casing ensures an easy fit in almost all modern enthusiast PC cases, providing more space for cable management and airflow in your chassis.

MULTIPLE-GPU READY
PCI-E connectors to power dual or triple (RM850 only) GPUs for your most ambitious PC gaming builds.

FULLY MODULAR CABLES
Use only the cables you need for quick and easy installation, simplifying routing and cable management. Store your unused cables in the included cable bag.

ADD THE FINISHING TOUCH
Complement your system's look with CORSAIR Premium Individually Sleeved Type 4 Gen 4 PSU Cables (sold separately), available in seven different colors and patterns. These durable and flexible cables come in triple-layer mesh paracord sleeving with included interlocking cable combs for an easy-to-install, professional looking build.

Energie
Totaal vermogen	750 W
AC-ingangsspanning	100 - 240 V
AC-ingangsfrequentie	47/63 Hz
Stroom	10 - 5 A
Gecombineerd vermogen (+3.3V)	150 W
Gecombineerd vermogen (+5V)	150 W
Gecombineerd vermogen (+12V)	750, 4 W
Gecombineerd vermogen(+5Vsb)	15 W
Max huidige output (+3.3V)	20 A
Max huidige output (+5V)	20 A
Max huidige output(+12V)	62, 0 A
Max huidige output (+5Vsb)	3 A
Stroomspanning bescherming	Over power, Over voltage, Overheating, Short circuit, Under voltage

Poorten & interfaces
Motherboard power connector	20+4 pin ATX
Lengte stroomkabel moederbord	610 mm
Aantal SATA power connectors	10
Aantal PATA power aansluiters	4
Lengte SATA-stroomkabel	800 mm
Peripheral (Molex) power connectors (4-pin)	1
Lengte stroomkabel randapparaat (Molex)	750 mm
EPS power connector (8-pin)	Ja
PCI Express power connectors (6+2 pin)	6
Lengte PCI Express-stroomkabel	750 mm
Bekabelingstype	Fully-Modular

Prestatie
Bedoeld voor	PC
Vormfactor van de voeding (PSU)	ATX
80 PLUS certificatie	80 PLUS Gold
ATX version	3
EPS version	3
Stille modus	Ja
Bearing technologie	Rifle
Mean time between failures (MTBF)	100000 h

Design
Kleur van het product	Black
Type koeling	Active
Ventilator diameter	135 mm
Aantal ventilatoren	1
Ventilator locatie	top

Inhoud van de verpakking
Meegeleverde kabels	AC

Gewicht en omvang
Breedte	150 mm
Diepte	160 mm
Hoogte Hoogte van het product	86 mm
Gewicht	1700 g

Verpakking
Type verpakking	Box

Logistieke gegevens
Code geharmoniseerd systeem (HS)	84733020

Overige specificaties
Kabelbinders inbegrepen	Ja
