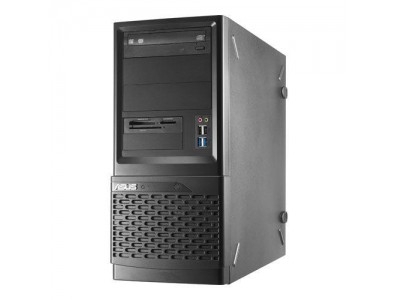

ASUS ESC700 G2, Full-Tower, HDD, SATA II, SATA III, DIMM, Interne voeding, Intel X79 Express

klik om te zoomen

ASUS ESC700 G2, Full-Tower, HDD, SATA II, SATA III, DIMM, Interne voeding, Intel X79 Express Vergelijk Componenten> Barebone
Merk:	Asus
Artikelnr:	1154908
SKU:	90S7XA0001C200UET
EAN:	4716659177272
Productgroep:	Barebone
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

Compact and Powerful Workstation for Professional Graphics

NVIDIA® Quadro™ Series Graphics Ready
This workstation is fully compatible with NVIDIA’s® Quadro™ series of entry, mainstream and performance level of professional graphics cards, providing users a flexible and wide-range supporting system.

Quiet Working Environment
The ESC700 G2 provides a quiet working environment (as low as 27.2dBA) by intelligently detecting system loads and automatically adjusting fan speed and power consumption.

Energy-saving & Power Efficient Solution
The ESC700 G2 supports DIGI+ power control technology for both the CPU and memory, being the world’s first total digital power design, granting users extreme performance and precise adjustment to the CPU & DRAM. Additionally, with the 80+ power supply, the ESC700 G2 is able to provide high energy efficiency and reduces power loss to save TCO for users.

Dual Intel® GbE LAN for Fast Network Connections
The ESC700 G2 is equipped with a dual Intel® Ethernet controller to support double the network bandwidth, teaming and fault tolerance. Together, they offer reliable and fast network connections.

USB3.0 Boost Support
With USB 3.0 Boost support, the ESC700 G2 detects the connected devices automatically and allows you to enjoy faster USB connection speeds.

Flexible Expansion Choices
The ESC700 G2 provides high expandability with six expansion slots, including four PCI-E Gen3 x16 slots (2 @x16 link or 4 @ x8 link) and 1 x PCI-E Gen3 x16 slot (x4 link), meeting the demand of future expansion.

Complete Compatibility
The ESC700 G2 can serve as workstation or desktop PC with Intel’s® up-to-date processors and ECC & non-ECC memory support. In addition, the workstation is compatible with versatile SAS, SATA RAID cards and professional LAN cards to benefit a wide range of customers.

Easy BIOS Update & Recovery
The workstation allows you to update or recover the BIOS easily, as there is a smart chip onboard for users to control without booting up. Simply insert the USB flash drive that contains the required BIOS to the specific USB port, press the BIOS flashback button, then wait for the BIOS to be updated.

DTS Ultra PCII Support
DTS Ultra PC II delivers exceptional 7.1 surround through the most popular PC audio setups - your existing stereo speakers or headphones. In addition to virtual surround, it upgrades original sound to new levels with Audio Restoration, recreating the dynamic range of audio files. Symmetry mode improves the balance of perceived loudness across different input sources and Enhance boosts audio quality through high and low frequency equalization. With these technologies, users experience better home theater audio with ease.

AI Suite II Software
The ESC700 G2 is bundled with ASUS AI Suite II software which provides a one-stop utility and user-friendly interface for system tuning.

Cutting-edge Architecture
The ESC700 G2 supports the latest Intel® Xeon® E5-1600/Core i7-3900/3800 processors. With eight DIMM sockets onboard, up to 64GB of DDR3 1600 memory is supported. Combined, they provide for a high computing capability that can tackle the most difficult of tasks. Additionally, there are more PCI-E lanes with PCI-E Gen 3 support, which is suitable for systems that require high I/O connectivity and bandwidth and supports more PCI-E devices.

Processor
Type processor	Nee

Geheugen
Geheugen slots type	DIMM
Aantal geheugenslots	8
Maximaal intern geheugen	64 GB
Ondersteunde geheugen types	DDR3
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz

Opslagmedia
Ondersteunde types opslag-drives	HDD
Opslagschijf afmetingen ondersteund	4, 5 "
Opslag schijfinterface	Serial ATA II, Serial ATA III

Netwerk
Ethernet LAN	Ja
LAN controller	Intel 82574L, Intel 82579V

Poorten & interfaces
Aantal USB 2.0-poorten	10
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A	4
Aantal Ethernet LAN (RJ-45)-poorten	2
Aantal IEEE 1394-/Firewire-poorten	1
PS/2 poort(en)	2
Aantal SATA III connectors	2

Uitbreidingsmodules
PCI Express x16 slots	6

Design
Type behuizing	Full-Tower
Kleur van het product	Black
Type product De subcategorie van een product	PC barebone

Prestatie
Chipset moederbord	Intel X79 Express
Processorsocket	LGA 2011 (Socket R)
Ondersteunt Windows	Windows 8
Code geharmoniseerd systeem (HS)	84713000

Energie
Soort voeding	Internal power supply unit

Eisen aan de omgeving
Temperatuur bij opslag	40 - 70 °C
Luchtvochtigheid bij opslag	20 - 90 %
Bedrijfstemperatuur (T-T)	10 - 35 °C

Gewicht en omvang
Breedte	423 mm
Diepte	190 mm
Hoogte Hoogte van het product	435 mm
Gewicht	10800 g
