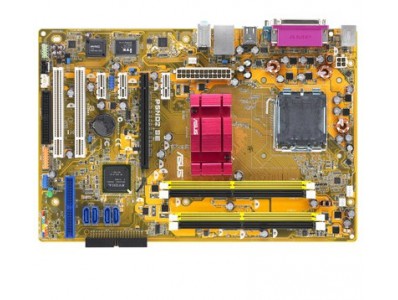

Asus P5ND2 SE ATX MB, LGA 775 (Socket T)

klik om te zoomen

Asus P5ND2 SE ATX MB, LGA 775 (Socket T) Vergelijk Componenten> Moederborden
Merk:	Asus
Artikelnr:	1001887
SKU:	P5ND2 SE
EAN:	4719543142134
Productgroep:	Moederborden
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

LGA775 Intel Core™2 Processor Ready
This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1066 / 800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world.

Dual-Core CPU
Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 Caches to satisfy the rising demand for more powerful processing capability.

Dual-Channel DDR2
64-bit computing, the next generation technology to replace current 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture.

NVIDIA® nForce4™ Ultra Intel® Edition
Get the power of NVIDIA® nForce4™ Ultra for Intel® platforms! High performance NVIDIA® nForce4™ Ultra MCPs provide impressive features for ASUS Motherboard users.

CrashFree BIOS 2
The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process.

C.P.R.(CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.

High Definition Audio
The onboard 6-channel High Definition audio CODEC enables high-quality ADI AD1986A audio CODEC, which automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection.

S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via an optical or coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.

ASUS MyLogo2
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

ASUS Q-Fan
Constant, high-pitched noise generated from heatsink fans are a thing of the past thanks to ASUS Q-Fan. This motherboard with Q-Fan technology intelligently adjusts fan speeds according to system loading to ensure quiet, cool and efficient operation.

PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 also outperforms PCI interface with its exceptional high bandwidth.

Serial ATA 3Gb/s
The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves.

Gigabit LAN
The Realtek Gigabit LAN controller delivers transfer speeds up to ten times faster than conventional 10/100 Ethernet connections. Gigabit LAN is the networking standard for the early future and is ideal for handling large amounts of data such as video, audio, and voice.

Max. 8 USB 2.0 ports
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data.

Processor
Processorfabrikant	Intel
Processorsocket	LGA 775 (Socket T)
Max. aantal SMP-processoren	1

Geheugen
Aantal geheugenslots	4
Maximaal intern geheugen	16 GB

Interne aansluitingen
USB 2.0 aansluitingen	2
Aantal SATA-aansluitingen	4
Aantal Parallel ATA aansluitingen	2
S/PDIF-uitgang	Ja
Aansluiting voor audiopaneel aan voorzijde	Ja
CD/AUX audio-ingang	Ja
ATX Power connector (24-pin)	Ja
Aansluitingen voor EATX voedingen	1
Aansluiting voor ventilator van voeding	Ja
Aansluiting voor CPU koeler	Ja
Aansluitingen voor behuizingsventilatoren	1
GAME/MIDI aansluiting	Ja

Aansluitingen achterzijde
Aantal USB 2.0-poorten	4
PS/2 poort(en)	2
Hoofdtelefoonuitgangen	1
Microfoon, line-in ingang	Ja
Parallelle poort(en)	1
Seriële poort(en)	1

Netwerk
Netwerkfuncties	Gigabit Ethernet

Kenmerken
Moederbord form factor De maat van het moederbord.	ATX
Audio-uitgangskanalen	5
Audiochip	ADI AD1986A
Overclocking features	SFS, ASUS C.P.R.

Uitbreidingsmodules
Uitbreidingsslots	1 x PCI-E (x16), 3 x PCI-E x1, 2 x PCI

BIOS
Grootte BIOS geheugen	31 MB

Energie
Type stroombron	ATX

Gewicht en omvang
Breedte	305 mm
Diepte	190 mm

Inhoud van de verpakking
Meegeleverde software	Drivers, ASUS AI Booster, ASUS LiveUpdate, Anti-virus (OEM), RAID Drivers

Overige specificaties
Speciale eigenschappen	ASUS Q-Fan, ASUS MyLogo2
Onderhoudseigenschappen	WOL by PME, WOR by Ring, WOW
