|Enrich Vista Enjoyment with Exclusive Technologies|

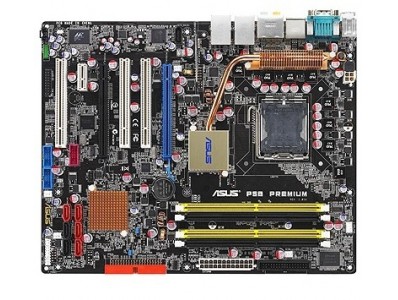

The P5B Premium Vista Edition motherboard features ScreenDUO, AI Remote, ASAP, AP Trigger and TPM Support, allowing you to fully enjoy the latest Microsoft Windows Vista™ operating system. This motherboard also gives you the advanced ASUS quiet thermal solution including 8-Phase Power Design, Stack Cool 2, Heat Pipe Design, Q-Fan 2 to build a cool and stable environment. With the exclusive AI NOS™, AI Gear and AI Nap, the P5B Premium Vista Edition motherboard delivers extreme performance, minimum noise and maximum power saving under Windows Vista™.
AI Lifestyle Series
AI Lifestyle Series motherboards bring lifestyle and personal computing together. They provide you better system performance to enjoy graphic-intensive games and applications. The cutting-edge audio feature dramatically enhances the quality of voice signal. Thoughtful design allows you to set up your system easily. To create a peaceful environment, several new and improved innovations are included to reduce noise and temperature. Don´t change your way of life for a computer. Instead let the ASUS Lifestyle Series improve the quality of your life.
LGA775 Intel® Core™2 Processor Ready
This motherboard supports the latest Intel® Quad-core processors in LGA775 package.
It´s excellent for multi-tasking, multi-media and enthusiastic gamers with 1066/800 MHz FSB.
Intel® Quad-core is one of the most powerful CPU in the world.
LGA775 Intel® Core™2 Processor Ready
This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1066 / 800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world.
Intel® P965 Chipset
The Intel® P965 Express Chipset is the latest chipset designed to support maximum 8GB dual-channel DDR2 800/667/533 architecture, 1066/800 FSB (front-side-bus), PCI Express x16 graphics and multi-core CPU. It especially includes Intel® Fast Memory Access Technology that significantly optimizes the use of available memory bandwidth and reduces the latency of the memory accesses.
Dual-Channel DDR2 800
DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications.
Time saving and easy information access!
The ScreenDUO provides a second display panel to enable you to conveniently view important information without having to start up your PC. The ScreenDUO synchronizes information from the PC or websites; displays RSS messages; meeting schedules and other important information. This saves you the time and the hassle to turn on your PC each time you wanted to view vital information.
Enjoy the fun and convenience of remote control for your PC!
The ASUS AI Remote gives you unprecedented control from the comfort of your couch. With just the touch of a button, you can quickly do your usual computer activities such as turn ON/OFF your PC; launch your favorite applications by enabling AP Trigger function; or control AI Gear and AI Nap. The AI Remote also gives you the comfort of a traditional remote on media player. Have an ASUS AI Remote in your hand and do more with your PC from a distance!needs.
Quickly power on PC and get to the favorite applications at one touch!
The ASUS AP Trigger allows you to quickly boot or resume directly into media or into your favorite applications. With just the touch of a button on the AI Remote controller, you can quickly turn on your PC and launch predefined applications simultaneously!
ASAP (ASUS Accelerated Propeller)
Support Windows Vista ReadyBoost™ technology for greater productivity!
ASAP gets you to your destination ASAP. ASAP supports the Windows ReadyBoost™ technology which improves system performance under Windows Vista. Enjoy greater efficiency and get more productivity out of your system - ASAP.
Support TPM which can provide secure working environment!
This motherboard supports the Trusted Platform Module (TPM), which provides you with enhanced data protection, security via high-level encryption / decryption, and ensures platform integrity. The TPM meets the Windows Vista BitLocker™ Drive Encryption hardware requirement for a more secure working environment.
Optimize performance and quietness as you wish!
To balance both system performance and quietness, AI Gear allows users to choose from profiles to adjust CPU frequency and vCore voltage, minimizing system noise and power consumption. Users can real-time change the mode under operating system to suit their needs.
Minimize noise and power consumption when temporarily away
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while you´re sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
8 Phase Power Design
The ASUS 8-Phase Power Design provides highly efficient operation to generate less heat (at least 15°C (59°F)) than other conventional power solutions. It reduces input ripple current and output ripple voltage, which keeps CPU and power module from suffering the risk of high power stress. It has the advantages of quick transient response and stability, especially beneficial when CPU requires more current immediately under heavy loading or overclocking mode.
Fanless Design - Stack Cool 2
offered exclusively by ASUS. It effectively transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board) for effective heat dissipation.
Fanless Design - Heat Pipe
The Heat Pipe design effectively directs the heat generated by the chipsets to the heatsink near the back IO ports, where it can be carried away by existing airflow from CPU fan or bundled optional fan. The purpose of the innovative heat pipe design on this motherboard is that the groundbreaking fanless design does not have lifetime problems as a chipset fan does. Furthermore, it provides options for users to install side-flow fan or passive cooler. The Heat Pipe design is the most reliable fanless thermal solution to date.
ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation.
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording.
The bundled Superbeam Array Microphone receives only the sound coming from the reception cone and ignores the sound coming from other directions. This mechanism eliminates a large number of interferences including neighboring speakers and reverberations. It also uses advanced de-reverberation techniques to reduce echo and minimize its effect on the speech engine. This feature can enhance speech-centric application like Skype, online game, video conference and recording.
SATA on the Go
The P5B supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.
The Intel P965 chipsets incorporate six Serial ATA connectors with high performance RAID functions in RAID 0, 1, 5 and 10. The JMicron controller provides another two Serial ATA connectors for RAID 0, 1, and JBOD functions. This motherboard is the ideal solution to enhance hard disk performance and data back up protection without the cost of add-on cards.
Dual Gigabit LAN
The integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. This capability ensures rapid transfer of data from WAN to LAN without any added arbitration or latency.
IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.
High Definition Audio
Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.
Uses 100% All High-quality Conductive Polymer Capacitors!
This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.
The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumersÃÂ´ health while minimizing the impact on the environment.
