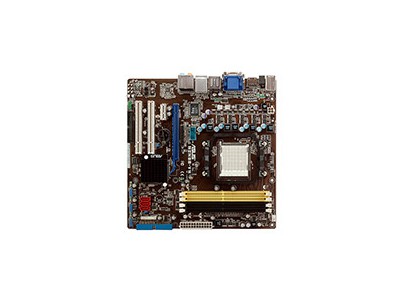

Asus M2N68-VM Micro-ATX MB, Socket AM2

klik om te zoomen

Asus M2N68-VM Micro-ATX MB, Socket AM2 Vergelijk Componenten> Moederborden
Merk:	Asus
Artikelnr:	1003333
SKU:	90-MIB5U0-G0EAY0GZ;M2N68-VM
EAN:	0610839164349;4719543164341
Productgroep:	Moederborden
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

Supports AMD Socket AM2+/AM2 for Phenom FX/Phenom/ Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
The motherboard supports AMD socket AM2+/AM2 for Phenom FX/Phenom/Athlon 64/ Sempron/Athlon 64 X2/ Athlon 64 FX/ processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture.It features 2000 MT/s HyperTransport1.0 Bus, dual-channel un-buffered DDR2 1066 (AM2+) and DDR2 800 (AM2) memories support and AMD Cool ´n´ Quiet! Technology.

AMD Cool ´n´ Quiet! Technology
M3N78 supports AMD Cool ´n´ Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment.

64-bit CPU support
64-bit computing, the technology to replace 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture.

NVIDIA® GeForce™ 7050PV+nForce™ 630a
The NVIDIA® GeForce™ 7050 GPU Northbridge supports Microsoft® DirectX 9.0 Shader Model 3.0, The NVIDIA® nForce™ 630a MCP delivers NVIDIA® Gigabit LAN, and NVIDIA® MediaShield storage management technology allowing easy RAID configuration (RAID 0, RAID 1,RAID10,RAID5) for Serial ATA 3Gb/s.

HDMI™ Interface
HDMI (High-Definition Multimedia Interface) is the industry-supported, uncompressed, all digital audio and video interface via a single cable and is HDCP compliant allowing playback of HD DVD, Blu-ray Disc and other protected content.

DVI Interface
DVI (Digital Visual Interface) provides high visual quality of digital display devices such as LCD monitor. The interface of this motherboard supports dual VGA output both DVI-D/HDMI and RGB.

NVIDIA® PureVideo™ HD Technology
PureVideo HD technology is the core of a complete Blu-ray or HD DVD movie solution, featuring hardware acceleration, post-processing, HDCP circuitry, and integration with leading HD movie software players.

Dual channel DDR2 1066
DDR2 1066 memory provides great performance for 3D graphics and other memory demanding applications on next generation memory technology.

PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better in applications such as 3D gaming.

Serial ATA 3Gb/s
This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification, allowing RAID 0, RAID 1,RAID 0+1,RAID 5 and JBOD configurations for five SATA connectors.

SATA on the Go
This motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.

Gigabit LAN
The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.

Processor
Processorfabrikant	AMD
Processorsocket	Socket AM2

Geheugen
Aantal geheugenslots	4
ECC	Ja
Non-ECC	Ja
Maximaal intern geheugen	8 GB

Opslag-controllers
Soorten RAID	1, 5, 10, JBOD

Grafisch
Maximum geheugen grafische adapter	256 MB

Interne aansluitingen
USB 2.0 aansluitingen	6
Aantal SATA-aansluitingen	3
CD/AUX audio-ingang	Ja
Aansluiting voor CPU koeler	Ja
Chassis intrusion aansluiting	Ja
COM aansluitingen	1

Aansluitingen achterzijde
Aantal USB 2.0-poorten	6
Aantal Ethernet LAN (RJ-45)-poorten	1
Aantal eSATA poorten	1
PS/2 poort(en)	1
VGA (D-Sub)poort(en) Aansluiting voor een analoge monitor	1
Aantal HDMI-poorten	1
DVI-D poorten	1

Kenmerken
Moederbord form factor De maat van het moederbord.	Micro-ATX

Uitbreidingsmodules
PCI Express x1 slots	1
PCI Express x16 slots	1

Energie
Type stroombron	ATX

Gewicht en omvang
Breedte	244 mm
Diepte	244 mm

Overige specificaties
Compatibele besturingssystemen	Windows Vista, Windows XP
Grafische controller	Nvidia Geforce 7
Onderhoudseigenschappen	WfM 2.0, DMI 2.0, WOR @ Ring, PME Wake Up, WO_USB, WO_KB/MS
