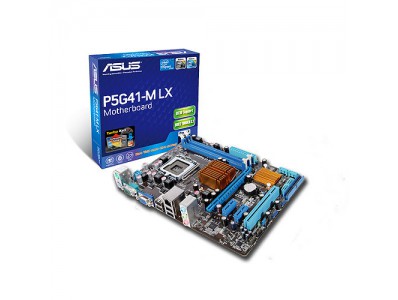

Asus P5G41-M LX ATX MB, Intel G41, LGA 775 (Socket T), DDR2

klik om te zoomen

Asus P5G41-M LX ATX MB, Intel G41, LGA 775 (Socket T), DDR2 Vergelijk Componenten> Moederborden
Merk:	Asus
Artikelnr:	1004283
SKU:	90-MIBAV0-G0EAY00Z;P5G41-M LX;P5G41-M/LX
EAN:	0610839172764;4719543172766;4719543177921
Productgroep:	Moederborden
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

LGA775 Intel Core 2 Processor Ready

This motherboard supports Intel LGA775 Core 2 Quad/ Core2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1333/ 1066/ 800 MHz FSB. This motherboard also supports Intel CPUs in the 45nm manufacturing process.

Intel IT Director Technology

Intel IT Director is a reactive software product that monitors security,data protection and health of a PC or network of PCs. It includes a centrally monitored dashboard for overseeing a network of wired or wireless PCs within a Local Area Network.

Turbo Key

ASUS Turbo Key allows you to turn the PC power button into an overclocking button. After you easy setup, Turbo Key boosts performances without interrupting ongoing work or games, simply through pressing the button.

MyLogo 2

Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

ASUS Q-Fan

ASUS Q-Fan technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise.

Intel G41 Chipset

The Intel G41 Express Chipset is the latest chipset designed to support dual-channel DDR2 1066(O.C)/800 / 667 architecture, 1333 / 1066 / 800 FSB (Front Side Bus), and multi-core CPUs. It is embeded with the next-generation Intel Graphics Media Acceleratior X4500. The Intel G41 Express Chipset delivers optimized 3D graphics performance and support for Microsoft DirectX10. Shader Model 4.0 and OpenGL 2.1. It especially includes Intel Fast Memory Access technology the significantly optimized the use of available memory bandwith and reduces the latency of the memory accesses.

ASUS CrashFree BIOS 3

ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to restore a corrupted BIOS file using the bundled support DVD or USB disk that contains the latest BIOS file.

EZ Flash 2

Simply update BIOS from a USB flash disk before entering the OS
ASUS EZ Flash 2 is a utility that allows you to update the BIOS without using an OS-based utility.

High Definition Audio

Enjoy high-end sound system on your PC!
The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.

GreenASUS

The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.

Geheugen
Ondersteunde geheugen types	DDR2
Geheugen slots type	DIMM
Aantal geheugenslots	2
Geheugen kanaal	dual
Non-ECC	Ja
Supported memory clock speeds	667, 800, 1066 MHz
Maximaal intern geheugen	8 GB
Niet gebufferd geheugen	Ja

Processor
Processorfamilie	Intel
Compatibele processors	Celeron, Celeron dual-core, Core 2 Duo, Core 2 Quad
Processorsocket	LGA 775 (Socket T)
Ondersteuning voor processor FSB	800, 1066, 1333 MHz

Interne aansluitingen
USB 2.0 aansluitingen	2
Aansluiting voor CPU koeler	Ja
Aansluitingen voor behuizingsventilatoren	1
Aansluiting voor audiopaneel aan voorzijde	Ja
Aantal SATA-aansluitingen	4
Aantal Parallel ATA aansluitingen	1
PCI Express power connectors (6-pin)	3
Aantal SATA II connectors	4

Aansluitingen achterzijde
Aantal USB 2.0-poorten	4
Aantal Ethernet LAN (RJ-45)-poorten	1
VGA (D-Sub)poort(en) Aansluiting voor een analoge monitor	1
PS/2 poort(en)	2
Aantal COM-poorten	1

Netwerk
Ethernet LAN	Ja
Ethernet interface type	Fast Ethernet

Prestatie
Component voor	PC
Moederbord chipset familie	Intel
Chipset moederbord	Intel G41
Moederbord form factor De maat van het moederbord.	ATX
Audio-uitgangskanalen	5
Moederbord southbridge	Intel ICH7

Grafisch
Grafische adapter	GMA X4500
Grafische adapter-familie	Intel

Uitbreidingsmodules
PCI Express x1 slots	2
PCI Express x16 slots	1
PCI slots	1

BIOS
BIOS type	AMI
ACPI version	2

Gewicht en omvang
Breedte	24 mm
Diepte	18 mm

Inhoud van de verpakking
Meegeleverde software	ASUS PC Probe II, Anti-virus software (OEM version), ASUS LiveUpdate Utility, Intel IT Director
Meegeleverde kabels	SATA
Meegeleverde drivers	Ja

Overige specificaties
PCI Express sleufhoeveelheid	3
