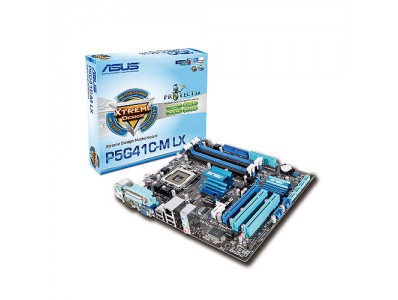

Asus P5G41C-M LX uATX MB, LGA 775 (Socket T)

klik om te zoomen

Asus P5G41C-M LX uATX MB, LGA 775 (Socket T) Vergelijk Componenten> Moederborden
Merk:	Asus
Artikelnr:	1004722
SKU:	90-MIBCJ0-G0EAY00Z;90-MIBCJ0-G0EAY0GZ;P5G41C-M LX
EAN:	4409543175187;4719543174890;4719543175187
Productgroep:	Moederborden
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

Intel® Core™2 Extreme / Core™2 Quad / Core™2 Duo CPU support
This motherboard supports Intel® LGA775 Core™ 2 Extreme / Core™ 2 Quad/ Core™ 2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1333/1066/800 MHz FSB. This motherboard also supports Intel® CPUs in the 45nm manufacturing process.

LGA775 Intel® 45nm Processor Ready
This motherboard supports the latest Intel 45nm CPU which introduces new micro-architecture features for greater performance at a given frequency, up to 50% larger L2 caches, and expanded power management capabilities for new levels of energy efficiency.

Dual channel DDR3 1333(O.C.) / DDR2 1066(O.C.) support
The motherboard supports DDR3 1333/1066/800 MHz or DDR2 memory 1066/800/667 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR3/DDR2 architecture doubles the bandwidth of your system memory to boost system performance, eliminating bottlenecks with peak bandwidths of up to 19.2 GB/s.

Intel® G41 Chipset
The Intel® G41 Express Chipset is designed to support dual-channel DDR2 1066 (overclocking)/800/667 architecture, 1333/1066/800 Front Side Bus (FSB), PCIe 1.1, and mutli-core CPUs. It especially includes Intel® Fast memory bandwidth and reduces the latency of the memory accesses.

High Definition Audio
Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.

Gigabit LAN
The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.

Geheugen
Aantal geheugenslots	2
Non-ECC	Ja
Maximaal intern geheugen	8 GB

Processor
Processorfamilie	Intel
Processorsocket	LGA 775 (Socket T)

Interne aansluitingen
USB 2.0 aansluitingen	4
S/PDIF-uitgang	Ja
Aansluiting voor CPU koeler	Ja
Aansluitingen voor EATX voedingen	1
Aansluitingen voor behuizingsventilatoren	1
Chassis intrusion aansluiting	Ja
Aantal SATA-aansluitingen	4
ATX Power connector (24-pin)	Ja

Aansluitingen achterzijde
Aantal USB 2.0-poorten	4
Aantal Ethernet LAN (RJ-45)-poorten	1
Microfoon, line-in ingang	Ja
VGA (D-Sub)poort(en) Aansluiting voor een analoge monitor	1
PS/2 poort(en)	2
Parallelle poort(en)	1
Aantal COM-poorten	1
Hoofdtelefoonuitgangen	1

Netwerk
Netwerkfuncties	PCIe Gb LAN

Prestatie
Moederbord form factor De maat van het moederbord.	uATX
Audio-uitgangskanalen	7
Audiosysteem	1708S

Grafisch
Maximum geheugen grafische adapter	1024 MB
Grafische adapter	GMA X4500

Uitbreidingsmodules
PCI Express x1 slots	1
PCI Express x16 slots	1

BIOS
Grootte BIOS geheugen	8 MB
ACPI version	2

Gewicht en omvang
Breedte	244 mm
Diepte	216 mm

Inhoud van de verpakking
Meegeleverde software	ASUS PC Probe II, ASUS Update
Meegeleverde drivers	Ja
