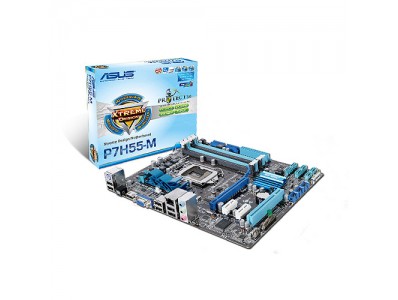

Asus P7H55-M Micro-ATX MB, Intel H55, LGA 1156 (Socket H), DDR3

klik om te zoomen

Asus P7H55-M Micro-ATX MB, Intel H55, LGA 1156 (Socket H), DDR3 Vergelijk Componenten> Moederborden
Merk:	Asus
Artikelnr:	1005000
SKU:	90-MIBBK3-G0EAY00Z;90-MIBBK3-G0EAY0KZ;90-MIBBK3-G0EAY0WZ;P7H55-M
EAN:	0610839175369;4719543175361;4719543177006;4719543177013;5052179466489
Productgroep:	Moederborden
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

This motherboard supports the latest Intel® Lynnfield and Clarkdale processors in LGA1156 package, which has memory and PCI Express controller integrated to support 2-channel (4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes providing great graphics performance. Intel® Lynnfield and Clarkdale processors are the most powerful and energy efficient CPUs in the world. Moreover, Intel® Clarkdale integrated Graphics Processing Unit (GPU) processors which goes with Intel® H55 chipset with VGA out can bring you to the whole new experience of the next generation VGA performance. It also provides separated 3D, 2D and Video Engines to execute different graphic control in hardware.

The Intel® H55 Express Chipset is the latest one-chipset design to support latest 1156 socket Intel® Core™ i7/ Core™ i5/Core™ i3/ Pentium® Processors. Intel® H55 chipset provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Using Intel Core™ i5 6 Series, Core™ i3 5 Series and Pentium® CPU with H55 Express Chipset to enjoy the latest Intel integrated graphic performance!

The motherboard supports DDR3 memory that features data transfer rates of 2200(O.C.) / 2133 / 2000/ 1866 / 1800/ 1600/ 1333/ 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.

The new ASUS EPU—the world’s first power saving engine, has been upgraded to a new 4 engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card/ integrated GPU, hard drives and CPU cooler / system fans), the EPU automatically provides the most appropriate power usage via intelligent acceleration and overclocking—helping save power and money.

The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.

Processor
Processorfabrikant	Intel
Processorsocket	LGA 1156 (Socket H)
Compatibele processors	Intel Core i3, Intel Core i5, Intel Core i7

Geheugen
Ondersteunde geheugen types	DDR3
Aantal geheugenslots	4
Geheugen kanaal	Dual-channel
Non-ECC	Ja
Supported memory clock speeds	1333, 1600, 1800, 1866, 2133, 2200 MHz
Maximaal intern geheugen	16 GB

Opslag-controllers
Ondersteunde opslagstationinterfaces	SATAII

Grafisch
Ondersteuning voor parallel processing	Not supported

Interne aansluitingen
USB 2.0 aansluitingen	3
Aantal SATA II connectors	6
Aantal Parallel ATA aansluitingen	1
ATX Power connector (24-pin)	Ja
Aansluiting voor CPU koeler	Ja
Aansluitingen voor behuizingsventilatoren	1
EPS power connector (8-pin)	Ja
COM aansluitingen	1

Aansluitingen achterzijde
Aantal USB 2.0-poorten	6
Aantal Ethernet LAN (RJ-45)-poorten	1
PS/2 poort(en)	1
VGA (D-Sub)poort(en) Aansluiting voor een analoge monitor	1
Aantal HDMI-poorten	1
Hoofdtelefoonuitgangen	1
Microfoon, line-in ingang	Ja
S/PDIF-uitgang	Ja

Netwerk
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
LAN controller	Realtek RTL8111E
Netwerkfuncties	Gigabit Ethernet

Kenmerken
Component voor	PC
Moederbord form factor De maat van het moederbord.	Micro-ATX
Moederbord chipset familie	Intel
Chipset moederbord	Intel H55
Audiochip	Realtek ALC887
Audio-uitgangskanalen	7
Type stroombron	ATX
Certificering	RoHS

Uitbreidingsmodules
PCI Express x1 slots	2
PCI Express x16 slots	1
PCI Express slots versie	2
PCI slots	1

BIOS
BIOS type	AMI
Grootte BIOS geheugen	61 MB
ACPI version	2.0a
Clear CMOS jumper	Ja

Gewicht en omvang
Breedte	244 mm
Diepte	244 mm

Inhoud van de verpakking
Meegeleverde drivers	Ja

Overige specificaties
Onderhoudseigenschappen	WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
