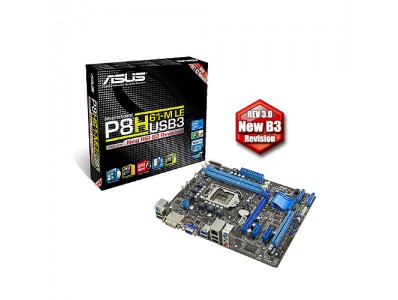

Asus P8H61-M LE/USB3 REV 3.0 Micro-ATX MB, Intel H61, LGA 1155 (Socket H2)

klik om te zoomen

Asus P8H61-M LE/USB3 REV 3.0 Micro-ATX MB, Intel H61, LGA 1155 (Socket H2) Vergelijk Componenten> Moederborden
Merk:	Asus
Artikelnr:	1005074
SKU:	90-MIBF66-G0EAY00Z;90-MIBF66-G0UAY00Z;P8H61-M LE/USB;P8H61-M LE/USB3;P8H61-M LE/USB3 <REV 3.0>;TBD4
EAN:	0610839180097;2002278952003;4719543180099
Productgroep:	Moederborden
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

LGA1155 socket for Intel® Second Generation Core™ i7/ Core™ i5/ Core™ i3 Processors
This motherboard supports the Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (2 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors are among the most powerful and energy efficient CPUs in the world.

Intel® H61(B3) Express Chipset
The Intel® H61(B3) Express Chipset is the latest single-chipset design to support the new 1155 socket Intel® Core™ i7 / Core™ i5 / Core™ i3 2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability.

Dual-Channel DDR3 1333 / 1066 support
The motherboard supports DDR3 memory that features data transfer rates of 1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.

USB 3.0 Support
Experience ultra-fast data transfer at 4.8Gbps with USB 3.0 – the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10x faster and is also backward compatible with USB 2.0 components.

EPU
Tap into the world’s first real time PC power saving engine through a simple onboard switch or AI Suite II utility. Get total system power savings by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity.

GPU Boost
GPU Boost overclocks the integrated GPU in real time for the best graphics performance. User-friendly UI facilitates flexible frequency and voltage adjustments. Its ability to deliver multiple overclocking profiles also provides rapid and stable system-level upgrades.

AI Suite II
With its fast user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows you to supervise overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.

100% All High-quality Conductive Polymer Capacitors
This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.

Anti-Surge Protection
Protect Your Device Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system.

1. Real-time over voltage detection.
2. Active protection against potential damage to your motherboards and systems.
TPM

Trusted Platform Module (TPM) system, which can securely store keys( for encryption/ decryption), digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

EFI BIOS (EZ Mode)
ASUS brand new EFI BIOS offers a user-friendly interface that goes beyond traditional keyboard BIOS input to enable more flexible and convenient mouse controls. You can easily navigate the new EFI BIOS with the same smoothness as their operating system. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system settings.

TurboV
Easy, Real-Time O.C. Tunings
Feel the adrenaline rush of real-time OC-now a reality with the ASUS TurboV. This easy OC tool allows you to overclock without exiting or rebooting the OS; and its user-friendly interface makes overclock with just a few clicks away. Moreover, the ASUS OC profiles in TurboV provides the best O.C. settings in different scenarios.

ErP ready
The motherboard is European Union´s Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.

Geheugen
Aantal geheugenslots	2
Geheugen kanaal	dual
Non-ECC	Ja
Supported memory clock speeds	1066, 1333 MHz
Maximaal intern geheugen	16 GB

Processor
Processorfamilie	Intel
Compatibele processors	Core i3, Core i5, Core i7
Processorsocket	LGA 1155 (Socket H2)

Interne aansluitingen
USB 2.0 aansluitingen	2
S/PDIF-uitgang	Ja
Aansluiting voor CPU koeler	Ja
COM aansluitingen	1
Aansluitingen voor EATX voedingen	1
Aansluitingen voor behuizingsventilatoren	1
Aansluiting voor audiopaneel aan voorzijde	Ja
TPM connector	Ja
Chassis intrusion aansluiting	Ja
Aantal SATA-aansluitingen	4
Aantal SATA II connectors	4
ATX Power connector (24-pin)	Ja

Aansluitingen achterzijde
Aantal USB 2.0-poorten	4
Aantal poorten USB 3.0 (3.1 Gen 1) Type A	2
Aantal Ethernet LAN (RJ-45)-poorten	1
Microfoon, line-in ingang	Ja
VGA (D-Sub)poort(en) Aansluiting voor een analoge monitor	1
DVI-D poorten	1
PS/2 poort(en)	1
Hoofdtelefoonuitgangen	1

Netwerk
Ethernet interface type	Gigabit Ethernet
LAN controller	Realtek RTL8111E

Prestatie
Component voor	PC
Chipset moederbord	Intel H61
Moederbord form factor De maat van het moederbord.	Micro-ATX
Audio-uitgangskanalen	7
Audiosysteem	Realtek ALC887

Grafisch
Ondersteuning voor parallel processing	Not supported

Uitbreidingsmodules
PCI Express x1 slots	2
PCI Express x16 slots	1
PCI Express slots versie	2
PCI slots	1

BIOS
BIOS type	EFI
Grootte BIOS geheugen	4 MB
ACPI version	2.0a

Gewicht en omvang
Breedte	244 mm
Diepte	203 mm

Inhoud van de verpakking
Meegeleverde drivers	Ja
Snelle installatiehandleiding	Ja
