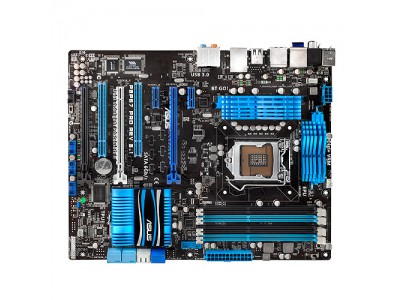

Asus P8P67 PRO (REV 3.1) ATX MB, Intel P67, LGA 1155 (Socket H2)

klik om te zoomen

Asus P8P67 PRO (REV 3.1) ATX MB, Intel P67, LGA 1155 (Socket H2) Vergelijk Componenten> Moederborden
Merk:	Asus
Artikelnr:	1005229
SKU:	90-MIBG40-G0EAY00Z;90-MIBG4A-G0EAY00Z
EAN:	0610839180752;4719543180754;8179145180754
Productgroep:	Moederborden
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

Digital Power Design: The New Standard
The world’s first Dual Intelligent Processors from ASUS pioneered the use of two onboard chips - EPU (Energy Processing Unit) and TPU (TurboV Processing Unit). New generation Dual Intelligent Processors 2 with DIGI+ VRM digital power design launch control into a new era.

The digital architecture delivers twice the precision power, intelligently adjusting PWM voltage and frequency modulation with minimal power loss through BIOS tuning and an exclusive user interface to increase the board’s overclocking range while performance reaches its full potential. It also adjusts VRM frequencies dynamically, cutting radiation interference by half and decreasing Vcore power noise for CPU to enhance system stability through enabling VRM spread spectrum. ASUS DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance, extreme system stability and greater power efficiency.

DIGI+ VRM

Herald the Arrival of a New Digital Power Design Era
VRM, or voltage regulator modules, are considered among the most essential motherboard design components. They supply the voltage demanded by the CPU, and a good VRM must intelligently detect actual CPU power draw to provide precise power accordingly. ASUS DIGI+ VRM is an innovative, industry-leading technology that fully integrates Intel® VRD12 specifications on a native level, greatly enhancing power to go far beyond the limits of analog designs.

ASUS DIGI+ VRM design features a digital programmable microprocessor onboard and upgrades motherboard power delivery to a digital standard. The 12+2 digital architecture delivers twice the precision power, intelligently adjusting PWM voltage and frequency modulation with minimal power loss through BIOS tuning and exclusive user interface to increase over-clocking range while performance reaches its full potential. It also adjusts frequencies dynamically, cutting radiation interference by half to enhance system stability through enabling spread spectrum. The DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance. extreme system stability, and greater power efficiency.

Advantages of ASUS DIGI+ VRM Digital Power Design
Unlike previous VRD versions, Intel® VRD12 uses digital signals (SVID). To ensure perfect power delivery, ASUS specially designed DIGI+ VRM to sync completely with this new technology.
Faster sensing and response: ASUS DIGI+ VRM acts as a digital controller to perfectly match digital power signal (SVID) requests from the CPU, eliminating digital-to-analog conversion lag.

Better cooling:
exclusive dual driver and MOS design doubles the heat dissipation area with expanded cooling surfaces for improved thermal performance. Spacing components out over a wider area speeds up cooling to enhance reliability and stability.

2X CPU power supply:
the same exclusive dual driver and MOS design also provides twice the CPU power supply with two complete power stages. This results in far greater phase load tolerances, so the CPU never has to wait for power to arrive, increasing performance and overclocking potential.

Active Cooling for Extreme Durability- Super Cool VRM
ASUS DIGI+ VRM delivers intelligent power management to balance loadings for each power phase by detecting VRM temperatures to ensure longer component lifespan and better cooling.

Processor
Processorfabrikant	Intel
Processorsocket	LGA 1155 (Socket H2)
Compatibele processors	Intel Core i3, Intel Core i5, Intel Core i7

Geheugen
Aantal geheugenslots	4
Non-ECC	Ja
Supported memory clock speeds	1333, 1600, 1866, 2133, 2200 MHz
Maximaal intern geheugen	32 GB

Opslag-controllers
Soorten RAID	1, 5, 10

Interne aansluitingen
USB 2.0 aansluitingen	6
Aantal SATA II connectors	6
S/PDIF-uitgang	Ja
Aansluiting voor audiopaneel aan voorzijde	Ja
Aansluiting voor CPU koeler	Ja
Chassis intrusion aansluiting	Ja
IEEE1394 aansluitingen	1

Aansluitingen achterzijde
Aantal USB 2.0-poorten	6
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A	2
Aantal Ethernet LAN (RJ-45)-poorten	1
Aantal eSATA poorten	1
PS/2 poort(en)	2
Aantal IEEE 1394-/Firewire-poorten	1
Microfoon, line-in ingang	Ja

Netwerk
Ethernet interface type	Gigabit Ethernet
LAN controller	Intel 82579

Kenmerken
Component voor	PC
Moederbord form factor De maat van het moederbord.	ATX
Chipset moederbord	Intel P67
Audiochip	Realtek ALC892
Audio-uitgangskanalen	7
Type stroombron	ATX

Uitbreidingsmodules
PCI Express x1 slots	2
PCI Express x16 slots	3

BIOS
BIOS type	AMI
Grootte BIOS geheugen	31 MB
ACPI version	2.0a

Gewicht en omvang
Breedte	244 mm
Diepte	305 mm

Inhoud van de verpakking
Meegeleverde drivers	Ja

Overige specificaties
Onderhoudseigenschappen	WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE
