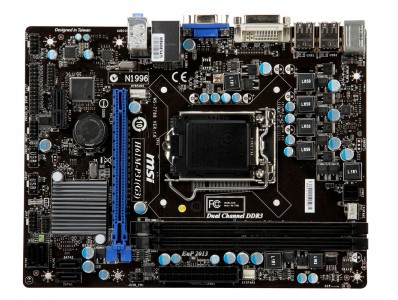

MSI H61M-P31 (G3) Micro-ATX MB, Intel H61, LGA 1155 (Socket H2), DDR3

klik om te zoomen

MSI H61M-P31 (G3) Micro-ATX MB, Intel H61, LGA 1155 (Socket H2), DDR3 Vergelijk Componenten> Moederborden
Merk:	MSI
Artikelnr:	1009011
SKU:	7788-020R;H61M-P31 (G3);H61M-P31 G3
EAN:	0816909094244;4719072252595
Productgroep:	Moederborden
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

World’s 1st PCI Express Gen 3 mainboard brand
With ultra-high 32GB/s transfer bandwidth, PCI Express Gen 3 provides a 2X faster transfer rate than the previous generation, this delivers amazing capabilities for true next generation extreme gaming.

OC Genie II
Just press the OC Genie button or enable OC Genie II function in BIOS menu, the CPU performance (P67 series) or the 3D performance of iGPU (H67/H61 series) will be highly improved. Whether users want to watch a high bit-rate HD movie or go online gaming, both can be enjoyed with image performance that is smoother and lag-free!

Intel 22nm CPU Ready
Designed to be compatible with 3rd Gen Intel® Core™ i7/ Core™ i5/ Core™ i3/ Pentium®/ Celeron® processors for LGA 1155 socket.

B3 Stepping Ready
To fix Intel’s 6 Series chipset design error, the SATA problems in its 6 Series chipset, MSI implements the latest Intel B3 Stepping 6 Series chipset on its Z68/P67/H67 mainboards for fixing SATA problems in the Intel Series 6 chipsets. Consumers can now identify the latest MSI Z68/P67/H67 mainboards equipped with the Intel B3 Stepping chipset with the MSI B3 Stepping Ready logo. This provides a more confident way to identify your next-generation P67/H67 mainboard.

ClickBIOS Concept
Click BIOS Concept is based on the new UEFI technology which supports todays latest hardware. From faster booting to supporting large hard drives with a capacity of over 3TB. MSI's Click BIOS can be controlled with both a keyboard, but it also supports mouse control which simplifies navigating and manipulating system settings.

M-Flash
Compared to common mainboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC.

All Solid Capacitors
Capacitors are the most important component for electronic product's power supply. The quality of the capacitors can impact the stability of the entire system and risk of product failure. Currently there are two types of capacitors, electrolytic capacitors and solid capacitors. Compared to electrolytic capacitors, solid capacitors have a longer lifespan, and provide a more stable power under high temperatures. More importantly, solid capacitors do not have any liquid materials inside, and thus will not suffer a leak which would infringe upon the product’s stability. With such benefits is it no wonder that solid capacitors are very important for product quality's improvement.

Winki 3
Winki 3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast booting speed and a multi-language interface, the built-in Winki 3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, picture browsing, and more. It's the most practical way to be online in the shortest time.

Super Charger
Mobile consumer appliances are getting more and more attention in current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI Super Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the Super Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs.

Live Update 5
MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website.

Processor
Processorfabrikant	Intel
Processorsocket	LGA 1155 (Socket H2)
Compatibele processors	Intel Core i3, Intel Core i5, Intel Core i7
Max. aantal SMP-processoren	1

Geheugen
Ondersteunde geheugen types	DDR3
Aantal geheugenslots	2
Geheugen slots type	DIMM
Geheugen kanaal	Dual-channel
Geheugen voltage	1.5 V
Supported memory clock speeds	1066, 1333 MHz
Maximaal intern geheugen	16 GB
Niet gebufferd geheugen	Ja

Opslag-controllers
Ondersteunde opslagstationinterfaces	SATAII

Grafisch
Maximum geheugen grafische adapter	1759 MB
Ondersteuning voor parallel processing	Not supported
Ingebouwde grafische adapter	Ja
DirectX versie	10

Interne aansluitingen
USB 2.0 aansluitingen	2
Aantal SATA II connectors	4
Aansluiting voor audiopaneel aan voorzijde	Ja
ATX Power connector (24-pin)	Ja
Aansluiting voor ventilator van voeding	Ja
Aansluiting voor CPU koeler	Ja
Chassis intrusion aansluiting	Ja
Peripheral (Molex) power connectors (4-pin)	1
COM aansluitingen	1
Parallele connector	Ja

Aansluitingen achterzijde
Aantal USB 2.0-poorten	6
Aantal Ethernet LAN (RJ-45)-poorten	1
PS/2 poort(en)	2
VGA (D-Sub)poort(en) Aansluiting voor een analoge monitor	1
DVI-D poorten	1
Hoofdtelefoonuitgangen	1
Microfoon, line-in ingang	Ja

Netwerk
Ethernet LAN	Ja
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
LAN controller	Realtek RTL8111E
Wake-on-LAN	Ja
Netwerkfuncties	Gigabit Ethernet

Kenmerken
Component voor	PC
Moederbord form factor De maat van het moederbord.	Micro-ATX
Moederbord chipset familie	Intel
Chipset moederbord	Intel H61
Audiochip	Realtek ALC887
Audio-uitgangskanalen	7
Type stroombron	ATX

Uitbreidingsmodules
PCI Express x1 slots	1
PCI Express x16 slots	1
PCI Express slots versie	2, 3

BIOS
BIOS type	UEFI
Clear CMOS jumper	Ja

Gewicht en omvang
Breedte	173 mm
Diepte	226 mm

Overige specificaties
Snelle installatiehandleiding	Ja
