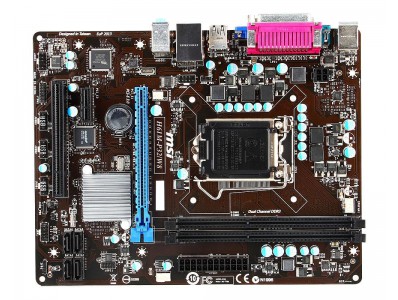

MSI H61M-P32/W8 Micro-ATX MB, Intel H61, LGA 1155 (Socket H2), DDR3

klik om te zoomen

MSI H61M-P32/W8 Micro-ATX MB, Intel H61, LGA 1155 (Socket H2), DDR3 Vergelijk Componenten> Moederborden
Merk:	MSI
Artikelnr:	1060963
SKU:	H61M-P32/W8
EAN:	0816909104509;4719072286774
Productgroep:	Moederborden
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

All Solid Capacitors
Capacitors are the most important component for electronic product's power supply. The quality of the capacitors can impact the stability of the entire system and risk of product failure. Currently there are two types of capacitors, electrolytic capacitors and solid capacitors. Compared to electrolytic capacitors, solid capacitors have a longer lifespan, and provide a more stable power under high temperatures. More importantly, solid capacitors do not have any liquid materials inside, and thus will not suffer a leak which would infringe upon the product’s stability. With such benefits is it no wonder that solid capacitors are very important for product quality's improvement.

Click BIOS Concept
Click BIOS Concept is based on the new UEFI technology which supports todays latest hardware. From faster booting to supporting large hard drives with a capacity of over 3TB. MSI's Click BIOS can be controlled with both a keyboard, but it also supports mouse control which simplifies navigating and manipulating system settings.

B3 Stepping Ready
To fix Intel’s 6 Series chipset design error, the SATA problems in its 6 Series chipset, MSI implements the latest Intel B3 Stepping 6 Series chipset on its Z68/P67/H67 motherboards for fixing SATA problems in the Intel Series 6 chipsets. Consumers can now identify the latest MSI Z68/P67/H67 motherboards equipped with the Intel B3 Stepping chipset with the MSI B3 Stepping Ready logo. This provides a more confident way to identify your next-generation P67/H67 motherboard.

World's 1st PCI Express Gen 3 motherboard brand
With ultra-high 32GB/s transfer bandwidth, PCI Express Gen 3 provides a 2X faster transfer rate than the previous generation, this delivers amazing capabilities for true next generation extreme gaming.

Intel 22nm CPU Ready
Designed to be compatible with 3rd Gen Intel® Core™ i7/ Core™ i5/ Core™ i3/ Pentium®/ Celeron® processors for LGA 1155 socket

Super Charger
Mobile consumer appliances are getting more and more attention in current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI Super Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the Super Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs.

M-Flash
Compared to common motherboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC.

Processor
Processorfabrikant	Intel
Processorsocket	LGA 1155 (Socket H2)
Compatibele processors	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-3xxx, i5-3xxx, i7-3xxx

Geheugen
Ondersteunde geheugen types	DDR3
Aantal geheugenslots	2
Geheugen slots type	DIMM
Geheugen kanaal	Dual-channel
Geheugen voltage	1.5 V
Supported memory clock speeds	1066, 1333, 1600 MHz
Maximaal intern geheugen	16 GB

Opslag-controllers
Ondersteunde opslagstationinterfaces	SATAII

Grafisch
Maximum geheugen grafische adapter	1759 MB
Grafische adapter-familie	Intel
Discrete grafische ondersteuning	Ja

Interne aansluitingen
USB 2.0 aansluitingen	3
Aantal SATA II connectors	4
Aansluiting voor audiopaneel aan voorzijde	Ja
ATX Power connector (24-pin)	Ja
Aansluiting voor CPU koeler	Ja
Aansluitingen voor behuizingsventilatoren	2
Chassis intrusion aansluiting	Ja
TPM connector	Ja
Serial port headers	1

Aansluitingen achterzijde
Aantal USB 2.0-poorten	4
Aantal Ethernet LAN (RJ-45)-poorten	1
PS/2 poort(en)	2
VGA (D-Sub)poort(en) Aansluiting voor een analoge monitor	1
Hoofdtelefoonuitgangen	1
Microfoon, line-in ingang	Ja
Parallelle poort(en)	1
Seriële poort(en)	1

Netwerk
Ethernet LAN	Ja
Ethernet interface type	Gigabit Ethernet
LAN controller	Realtek RTL8111E

Kenmerken
Component voor	PC
Moederbord form factor De maat van het moederbord.	Micro-ATX
Moederbord chipset familie	Intel
Chipset moederbord	Intel H61
Audiochip	Realtek ALC887
Audio-uitgangskanalen	7
Type stroombron	ATX
Type koeling	passive

Uitbreidingsmodules
PCI Express x1 slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI slots	1

BIOS
BIOS type	UEFI
Clear CMOS jumper	Ja

Processor speciale functies
Trusted Platform Module (TPM)	Ja

Gewicht en omvang
Breedte	190 mm
Diepte	244 mm

Overige specificaties
PCI Express sleufhoeveelheid	2
Front-side bus processor	100 MHz
Seriële port via interne header	Ja
