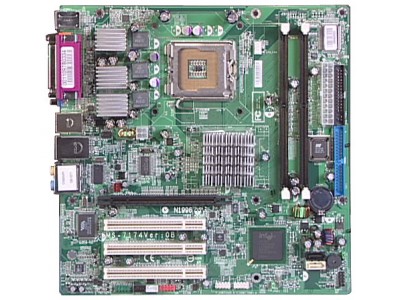

HP and Compaq Desktop PCs - Motherboard MS-7174 (refurbished 2 maanden garantie)

productimageoverlaylargeklik om te zoomen
productimageoverlaysmallproductimageoverlaysmallproductimageoverlaysmall
productimagelarge
productimagesmall
productimagesmall
productimagesmall
HP and Compaq Desktop PCs - Motherboard MS-7174 (refurbished 2 maanden garantie)
propertybulletMerk:HP
HP
propertybulletArtikelnr:1184034
propertybulletSKU:MS-7174;MSI MS-7174
propertybulletProductgroep:2de kansje/refurbished;Moederborden
propertybulletVoorraad:
propertybulletSocial media:
mailicongiconfbiconticonliicon


Beschrijving
Prijsverloop
Ook meegekocht
Beoordeling
Motherboard specifications table Part / Feature Specification / Support Motherboard description Motherboard manufacturer's name: MSI MS-7174 HP/Compaq name: Gypsum-GL8E CPU/Processor Socket: 775 Supports Pentium 4 Prescott (up to 519) and Celeron D (all) processors System bus 533 MHz only Chipset Northbridge: Intel i910E Southbridge: Intel I/O Controller Hub 6 BIOS features The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications Form factor Micro-ATX: 9.6 in X 9.6 in Memory Two 240-pin DDR2 DIMM sockets Non ECC memory only Supports PC2 3200 (400 MHz) and PC2 4200 (533 MHz) DDR2 DIMMs Supports 1.8v DDR2 SDRAM Maximum HP/Compaq approved memory is 2 GB Expansion slots One PCI Express x16 graphics Three PCI Video graphics Integrated Serial ATA 2 SATA connectors Each connector supports 1 serial ATA-150 disk drive Onboard audio Integrated Intel High Definition (TM) audio (Azalia) Realtek ALC 880 CODEC THX certification support 8-channels for Full Dolby 5.1/6.1/7.1 surround sound support with Dolby Pro Logic IIx Onboard LAN Intel 82562GT 10/100 Mbps Fast Ethernet Back panel I/0 One PS/2 mouse One PS/2 keyboard One VGA One Parallel One IEEE 1394 One RJ-45 networking port Four USB 2.0 One S/PDIF in One S/PDIF out Six audio connectors: side speaker out, rear speaker out, center/subwoofer, line in, line out, and microphone Internal connectors One floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes One IDE connector One 24-pin ATX power connector One 4-pin ATX 12 V power connector Two serial ATA ports Two USB 2.0 headers supporting four additional USB 2.0 ports One optical drive audio input One auxiliary audio input One front panel headphone and microphone connector One IEEE1394a header One CPU fan connector One system (chassis) fan connector
