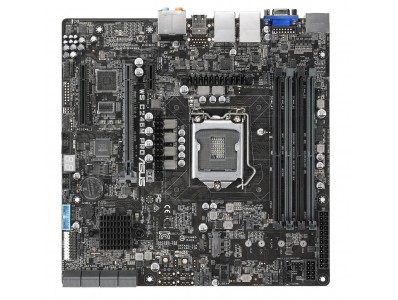

Asus WS C246M PRO Micro-ATX MB, Intel C246, LGA 1151 (Socket H4), DDR4

Name: asus-ws-c246m-pro-micro-atx-mb-intel-c246-lga-1151-socket-h4-ddr4
Brand: Asus
SKU: 90SW00E0-M0EAY0
Price: 298.49 EUR
Availability: InStock

klik om te zoomen

Asus WS C246M PRO Micro-ATX MB, Intel C246, LGA 1151 (Socket H4), DDR4 Vergelijk Componenten> Moederborden
Merk:	Asus
Artikelnr:	1237784
SKU:	90SW00E0-M0EAY0;WS C246M PRO
EAN:	0889349981634;4712900981636;889349981634
Productgroep:	Moederborden
Prijs:	€ 298,49
Downloads & links:	Handleiding
Voorraad:	Levertijd: 1 tot 4 werkdagen Nu bestelddinsdag verstuurd

Social media:

Beschrijving

Specificaties

Beoordeling

Rack-optimized design for better cooling efficiency
WS C246M PRO is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for the best performance and stability, ensuring it's ready to meet the demands of enterprise or academia use.

Powerful performance with Intel® Xeon® E processor and ECC memory
WS C246M PRO supports Intel® Xeon® E series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.

Supports up to three independent displays simultaneously
WS C246M PRO is equipped for total display flexibility with onboard HDMI, DisplayPort and VGA connectivity. With a compatible latest-generation Intel® processor, you can connect up to three independent displays simultaneously for better multitasking and enhanced productivity.

Accelerated data-transfer speeds of up to 32Gbps with M.2
With PCIe 3.0 x4 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe — that's up to 5.3X faster than traditional SSDs. WS C246M PRO also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup.

Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
WS C246M PRO has two onboard USB 3.1 Gen2 connectors that provide data-transfer speeds of up to 10Gbps, twice as fast USB3.1 Gen1.

SafeSlot
ASUS SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance, which protect your graphics card investment. Manufactured in a single step using a new injection-molding process integrates the slot with the fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

ASUS Control Center
WS C246M PRO features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

- Rack-optimized design for better cooling efficiency and stability
- Supports up to three independent displays simultaneously via HDMI, DisplayPort and VGA
- Accelerated data-transfer speeds of up to 32Gbps with M.2
- Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
- Dual Intel® Gigabit LAN with teaming support
- ASUS Control Center — A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses

Processor
Processorfabrikant	Intel
Processorsocket	LGA 1151 (Socket H4)
Compatibele processors	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium, Intel Xeon
Supported processor sockets	LGA 1151 (Socket H4)

Geheugen
Ondersteunde geheugen types	DDR4
Aantal geheugenslots	4
Geheugen slots type	DIMM
Geheugen kanaal	Dual-channel
Supported memory clock speeds	2133, 2400, 2666 MHz
Maximaal intern geheugen	64 GB

Opslag-controllers
Ondersteunde opslagstationinterfaces	SATAIII

Interne aansluitingen
USB 2.0 aansluitingen	2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen	1
ATX Power connector (24-pin)	Ja
COM aansluitingen	1
TPM connector	Ja

Aansluitingen achterzijde
Aantal USB 2.0-poorten	2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A	2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A	2
Aantal Ethernet LAN (RJ-45)-poorten	2
VGA (D-Sub)poort(en) Aansluiting voor een analoge monitor	1
Aantal HDMI-poorten	1
DVI-D poorten	1
Hoofdtelefoonuitgangen	1
Microfoon, line-in ingang	Ja

Netwerk
Ethernet LAN	Ja
LAN controller	Intel I210AT, Intel I219-LM
Wi-Fi	Nee

Kenmerken
Component voor	PC
Moederbord form factor De maat van het moederbord.	Micro-ATX
Moederbord chipset familie	Intel
Chipset moederbord	Intel C246
Audio-uitgangskanalen	8

Uitbreidingsmodules
PCI Express x1 slots	1
PCI Express x16 (Gen 3.x) slots	1

Logistieke gegevens
Code geharmoniseerd systeem (HS)	84733020

Verpakking
Breedte verpakking	367 mm
Diepte verpakking	353 mm
Hoogte verpakking	300 mm

Gewicht en omvang
Breedte	244 mm
Diepte	244 mm

Inhoud van de verpakking
Meegeleverde kabels	SATA
Gebruikershandleiding	Ja

Overige specificaties
PCI Express x4 (Gen 3.x) slots	1
Maximum UDIMM geheugen	64 GB
Snelle installatiehandleiding	Ja
