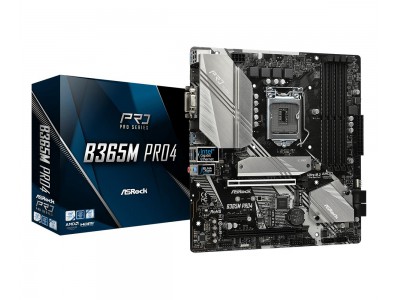

AsRock B365M Pro4 Micro-ATX MB, Intel B365, LGA 1151 (Socket H4), DDR4

klik om te zoomen

AsRock B365M Pro4 Micro-ATX MB, Intel B365, LGA 1151 (Socket H4), DDR4 Vergelijk Componenten> Moederborden
Merk:	AsRock
Artikelnr:	1251206
SKU:	90-MXB9T0-A0UAYZ;B365M PRO4
EAN:	4717677338027
Productgroep:	Moederborden
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Prijsverloop

Beoordeling

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

Full Coverage M.2 Heatsink
A massive full coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.

XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

PCI-E STEEL SLOT
The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely.

Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.

ASRock Intel® 4-Layer Memory POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.

Digi Power
This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo.

Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
more

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Processor
Processorfabrikant	Intel
Processorsocket	LGA 1151 (Socket H4)
Compatibele processors	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium

Geheugen
Ondersteunde geheugen types	DDR4
Geheugen slots type	DIMM
ECC	Ja
Supported memory clock speeds	2133, 2400, 2666 MHz
Maximaal intern geheugen	64 GB
Niet gebufferd geheugen	Ja

Grafisch
Ondersteuning voor parallel processing	4-Way CrossFireX
Grafische adapter-familie	AMD, Intel
Grafische adapter	UHD Graphics
HDCP	Ja
DirectX versie	12

Interne aansluitingen
USB 2.0 aansluitingen	2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen	1
Aantal SATA III connectors	6
Aansluiting voor audiopaneel aan voorzijde	Ja
ATX Power connector (24-pin)	Ja
Aansluiting voor CPU koeler	Ja
Aansluitingen voor behuizingsventilatoren	3
COM aansluitingen	1
TPM connector	Ja
12V vermogen-connector	Ja
RGB LED-aansluitrail	Ja

Aansluitingen achterzijde
Aantal USB 2.0-poorten	2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A	4
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C	1
Aantal Ethernet LAN (RJ-45)-poorten	1
PS/2 poort(en)	1
VGA (D-Sub)poort(en) Aansluiting voor een analoge monitor	1
Aantal HDMI-poorten	1
DVI-D poorten	1

Netwerk
Ethernet LAN	Ja
Ethernet interface type	Gigabit Ethernet
LAN controller	Intel I219-V

Kenmerken
Component voor	PC
Moederbord form factor De maat van het moederbord.	Micro-ATX
Moederbord chipset familie	Intel
Chipset moederbord	Intel B365
Audiochip	Realtek ALC892
Audio-uitgangskanalen	7
Type koeling	Active
Ondersteunt Windows	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
Certificering	FCC, CE, ErP/EuP Ready (ErP/EuP ready power supply is required)

Uitbreidingsmodules
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2

BIOS
BIOS type	UEFI AMI
Grootte BIOS geheugen	122 MB
ACPI version	6
Systeem Management BIOS (SMBIOS) versie	3

Logistieke gegevens
Code geharmoniseerd systeem (HS)	84733020

Gewicht en omvang
Breedte	244 mm
Diepte	229 mm

Inhoud van de verpakking
Meegeleverde kabels	SATA

Overige specificaties
Snelle installatiehandleiding	Ja
Aantal M.2 € slots	1
