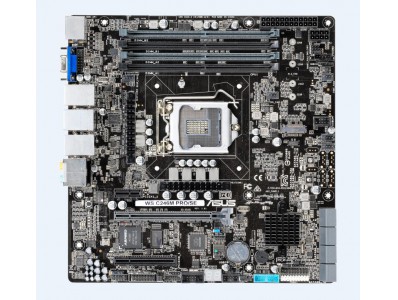

Asus WS C246M PRO/SE MB, Intel C246, LGA 1151 (Socket H4), DDR4

klik om te zoomen

Asus WS C246M PRO/SE MB, Intel C246, LGA 1151 (Socket H4), DDR4 Vergelijk Componenten> Moederborden
Merk:	Asus
Artikelnr:	1271142
SKU:	90SW00F0-M0EAY0;WS C246M PRO/SE
EAN:	4712900981742
Productgroep:	Moederborden
Downloads & links:	Handleiding
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

Comprehensive IT Management
WS C246M PRO/SE features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses:

ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

The embedded ASMB9-iKVM module supports remote BIOS updates, fans control, standalone KVM, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.

Rack-optimized design for better cooling efficiency
WS C246M PRO/SE is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for the best performance and stability, ensuring it's ready to meet the demands of enterprise or academia use.

Powerful performance with Intel® Xeon® E processor and ECC memory
WS C246M PRO/SE supports Intel® Xeon® E series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.

Supports up to three independent displays simultaneously
WS C246M PRO/SE is equipped for total display flexibility with onboard HDMI, DisplayPort and VGA connectivity. With a compatible latest-generation Intel® processor, you can connect up to three independent displays simultaneously for better multitasking and enhanced productivity.

Accelerated data-transfer speeds of up to 32Gbps with M.2
With PCIe 3.0 x4 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe — that's up to 5.3X faster than traditional SSDs. WS C246M PRO/SE also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup.

Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
WS C246M PRO/SE has two USB 3.1 Gen2 that provide data-transfer speeds of up to 10Gbps, twice as fast USB3.1 Gen1.

SafeSlot
ASUS SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance, which protect your graphics card investment. Manufactured in a single step using a new injection-molding process integrates the slot with the fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Processor
Processorfabrikant	Intel
Processorsocket	LGA 1151 (Socket H4)
Compatibele processors	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium, Intel Xeon

Geheugen
Ondersteunde geheugen types	DDR4
Aantal geheugenslots	4
Geheugen slots type	DIMM
Geheugen kanaal	Dual-channel
ECC	Ja
Non-ECC	Ja
Supported memory clock speeds	2400, 2666 MHz
Maximaal intern geheugen	128 GB

Opslag-controllers
Ondersteunde opslagstationinterfaces	SATAIII
Soorten RAID	1, 5, 10

Interne aansluitingen
Aantal SATA III connectors	8
COM aansluitingen	1

Aansluitingen achterzijde
Aantal USB 2.0-poorten	2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A	2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A	2
Aantal Ethernet LAN (RJ-45)-poorten	3
VGA (D-Sub)poort(en) Aansluiting voor een analoge monitor	1
Aantal HDMI-poorten	1
DVI-D poorten	1
Hoofdtelefoonuitgangen	1
Microfoon, line-in ingang	Ja

Netwerk
Ethernet LAN	Ja
LAN controller	Intel I210AT, Intel I219-LM

Kenmerken
Component voor	PC
Moederbord chipset familie	Intel
Chipset moederbord	Intel C246

Uitbreidingsmodules
PCI Express x1 slots	1
PCI Express x16 (Gen 3.x) slots	1

Processor speciale functies
Intel® Rapid Storage Technology	Ja

Logistieke gegevens
Code geharmoniseerd systeem (HS)	84733020

Inhoud van de verpakking
Meegeleverde kabels	SATA

Overige specificaties
PCI Express x8 (Gen 3.x) slots	1
Snelle installatiehandleiding	Ja
