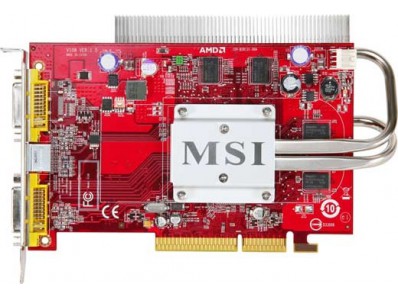

MSI RX2600PRO-T2D512Z/D2 - AGP8x, 512Mb GDDR2

klik om te zoomen

MSI RX2600PRO-T2D512Z/D2 - AGP8x, 512Mb GDDR2 Vergelijk Componenten> Grafischekaart
Merk:	MSI
Artikelnr:	1002680
SKU:	RX2600PRO-T2D512Z/D2;V108 -011;V108 -011R
EAN:	4719072066574
Productgroep:	Grafischekaart
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

Fully DirectX 10.0 compliant, including full speed 32-bit floating point per component Operations
- Full symmetry on both heads.
- Shader Model 4.0 geometry and pixel support in a unified shader architecture:
- Full speed 32-bit floating point processing per component.
- High dynamic range rendering with floating point blending, texture filtering and antialiasing support.
- High performance dynamic branching and flow control.
- Advanced shader design, with ultra-threading sequencer for high efficiency operations.
- Advanced, high performance branching support, including static and dynamic branching.
- Full anti-aliasing on render surfaces up to and including 128-bit floating point formats.
- Supportfor OpenGL 2.0

Anti-Aliasing Filtering
- 2x/4x/8x modes.
- Sparse multi-sample algorithm with gamma correction, programmable sample patterns, and centroid sampling.
- Temporal anti-aliasing.
- Adaptive anti-aliasing mode.
- Lossless color compression (up to 8:1) at all resolutions, up to and including widescreen HDTV.

Anisotropic Filtering
- 2x/4x/8x/16x modes
- Up to 128-tap texture filtering.

Advanced Texture Compression (3Dc+ )
- High quality 4:1 compression for normal maps and luminance maps.
- Works with any single-channel or two-channel data format.
- New vertex cache and vertex fetch design, to increase vertex throughput from previous generations.
- New multi-level texture cache to give optimal performance, greater than 8x the previous designs.

High efficiency ring bus memory controller
- Programmable arbitration logic maximizes memory efficiency, software upgradeable.
- Fully associative texture, color, and Z cache design.
- New hierarchical Z & Stencil buffers with Early Z Test.
- New lossless Z-buffer compression for both Z and Stencil.
- Fast Z-Buffer Clear.
- Z cache optimized for real-time shadow rendering.

HDCP - High-bandwidth Digital Content Protection
HDCP is a content protection specification to protect digital entertainment content across the DVI/HDMI interface. The HDCP provides a robust, cost-effective and transparent method for transmitting and receiving digital entertainment similar to DVI/HDMI-compliant digital displays. HDCP encrypts the data transmitted between the DVI/HDMI connector on the graphics adapter and the display. To provide this support, both the graphics adapter and the display need to have an HDCP transmitter and receiver respectively.

Processor
Maximum resolutie	2560 x 1600 pixels
Frequentie van processor	600 MHz

Geheugen
Grafische adapter, soort geheugen	GDDR2
Geheugenbus	128 bit
Kloksnelheid geheugen	800 MHz

Poorten & interfaces
Soort aansluiting	AGP 8x
TV-uit	Ja

Prestatie
DirectX versie	10
Shader model versie	4
OpenGL versie	2
Dual Link DVI	Ja
Volledige HD	Ja

Design
Vormfactor	Full-height, Half-Length (FH, HL
Brackethoogte	Full-Height (FH)

Overige specificaties
Mac-compatibiliteit	Nee
