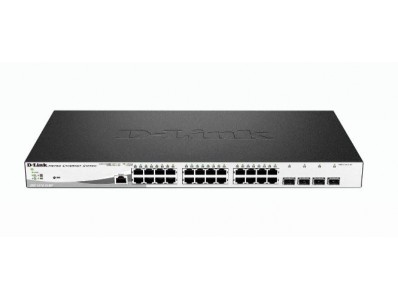

The DGS-1210 Series Gigabit Smart Managed Switches is the latest generation of D-Link Smart Managed Switches featuring D-Link Green 3.0 technology. The series offers a high level of energy saving and efficiency, as it also complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensures your network remains protected after the upgrade from IPv4 to IPv6. By offering multiple management options, the Smart Managed Switches allows quick deployment, infrastructure expansion, and seamless function upgrades. Built for small and medium-sized businesses, the DGS-1210 Series Smart Managed Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.
The DGS-1210 Series Gigabit Smart Managed Switches includes a range of affordable PoE-enable switches for businesses looking to power VoIP phones, wireless access points or network cameras. The DGS-1210-08P is a 8-port Smart Managed PoE Switch that provides 8 PoE-enabled ports that can supply power of up to 15.4 W each. Whereas the DGS-1210-24P is a 24-port Smart Managed PoE Switch that provides 12 PoE-enabled ports that can support up to 30 W of power output following IEEE 802.3at standard. The design allows more flexibility in power allocation for a variety of powered devices with affordable installation costs.
Easy Management
The D-Link DGS-1210 Series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC’s operating system. Furthermore, the web UI contains ten language options to make operations more straightforward. During the first installation, the D-Link Network Assistant will automatically discover all D-Link Smart Managed Switches in the network, allowing administrators to assign IP addresses and the subnet mask quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. The D-Link Network Assistant1’s important management commands, such as downloading firmware or a configuration file, offer a sophisticated method of batch operations for multiple switches.
Energy Saving
DGS-1210 Series are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, DGS-1210 switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom scheduling profiles. The profiles can also be applied to the PoE switch so that there is no unnecessary power consumption during off hours. The DGS-1210 Series switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.
Auto Surveillance VLAN and Voice VLAN
The process of setting up IP surveillance and VoIP on a network is automated and cannot be easier. Auto Surveillance VLAN (ASV) consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of real-time video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic is at their highest levels. Similarly, the Auto Voice VLAN guarantees clear audio quality and efficient transmission for all voice communication.
Exclusive Layer 2 Features
Equipped with a complete line-up of L2 features, the DGS-1210 Series switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature is designed primarily for administrators and customer service representatives, and can rapidly discover the type of error and determine the cable quality.
Secure your Network
D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.
Beheerfuncties
Switch type
Switch-laag
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Traffic-classificatie
Ja
System event log
Ja
MIB-ondersteuning
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
Type basis-switching RJ-45 Ethernet-poorten
Aantal moduleslots SPF
Vezel-optische connector
Console port
Netwerk
Netwerkstandaard
10G support
Nee
Koperen ethernetbekabelingstechnologie
Port mirroring
Ja
IP routing
Ja
Full duplex
Een full-duplex-systeem staat tweewegcommunicatie toe en - in tegenstelling tot half-duplex, staat toe dat dit gelijktijdig gebeurt.
Ja
Auto MDI/MDI-X
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Rate limiting
Ja
Spanning tree protocol
Ja
Auto-negotiation
Ja
VLAN=ondersteuning
Een Virtual Local Area Network (VLAN) bestaat uit een groep eindstations en switches die zich fysiek in één of meerdere netwerken, of zelfs gebouwen, kunnen bevinden, maar toch logisch gezien één enkele gemeenschappelijke LAN vormen.
Ja
Virtuele LAN-functies
Aantal VLANs
Optische vezel
Fiber ethernet cabling technologie
Data-uitwisseling
MAC-adrestabel
Het aantal IP-adressen dat het apparaat kan uitgeven.
Switchingcapaciteit
Verzending snelheid
Store-and-forward
Ja
Aantal wachtrijen
Aantal statische routes
Jumbo Frames ondersteuning
Ja
Jumbo frames
Packet buffergeheugen
Beveiliging
DHCP-functies
Access Control List (ACL)
Ja
Regels voor toegangscontrolelijst (ACL)
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
Er zijn verschillende manieren om data te versleutelen voordat het verzonden wordt. Over het algemeen geld, hoe meer bits, hoe veiliger.
SSH/SSL support
Ja
Bescherming lus
Ja
BPDU filtering / bescherming
Ja
Authenticatie
IP-MAC-Port binding
Ja
Multicast-functies
Multicast-ondersteuning
Ja
Multicast Listener Discovery (MLD) snooping
Design
Rack-montage
De mogelijkheden om dit apparaat in een rek te plaatsen of monteren.
Ja
Vormfactor
Eigenschappen van de buitenkant van het product.
Kleur van het product
LED-indicatoren
Aantal ventilatoren
Veiligheid
List of regulatory standards for all countries in which this product has been certified
Elektromagnetische compatibiliteit
Lijst van landen en hun respectievelijke standaarden voor de emissie van elektromagnetische straling waaraan het product voldoet.
Certificering
Prestatie
Type processor
Ja
Type geheugen
ECC memory for this configuration, including size expressed in bytes, followed by speed expressed in megahertz, followed by memory type
Intern geheugen
De hoeveelheid werkgeheugen (RAM) die geïnstalleerd is in het systeem. Werkgeheugen is veel sneller dan gewoon permanent geheugen, zoals bijvoorbeeld een harde schijf en wordt door het apparaat gebruikt voor het tijdelijk opslaan van gegevens.
Flash memory
Geluidsniveau
Mean time between failures (MTBF)
Dit is een gemiddelde, dat wil zeggen dat sommige apparaten korter en andere langer dan deze tijd mee zullen gaan.
Technische details
Nettogewicht transportverpakking
Pallet brutogewicht (lucht)
Aantal dozen per pallet (lucht)
Aantal per pallet (lucht)
Pallethoogte (lucht)
Pallet brutogewicht (zee)
Aantal dozen per pallet (zee)
Pallethoogte (zee)
Pallet brutolengte
Pallet brutobreedte
(Binnenste) verzendverpakking hoogte
(Binnenste) verzendverpakking lengte
Producten per (binnenste) verzendverpakking
(Binnenste) verzendverpakking breedte
(Binnenste) verzendverpakking gewicht
Producten per pallet (zee)
Energie
AC-ingangsspanning
AC-ingangsfrequentie
Stroomverbruik (typisch)
Het vermogen van het apparaat, uitgedrukt in Watts. Typische waardes die fabrikanten geven zijn stroomverbruik indien uitgeschakeld, standby/suspended, typisch gebruik, maximaal gebruik.
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Power over Ethernet betekent dat het apparaat stroom kan verzenden of ontvangen via de netwerkkabel, zodat bepaalde aangesloten apparatuur geen verbinding met het stopcontact nodig heeft.
Ja
Hoeveelheid Power over Ethernet (PoE) ports
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
Temperatuur bij opslag
Relatieve vochtigheid in bedrijf (V-V)
Relatieve Luchtvochtigheid is de hoeveelheid waterdamp die de lucht bevat in verhouding (in procenten) tot de hoeveelheid water die de lucht bij die temperatuur maximaal zou kunnen bevatten (100%), koude lucht kan bijvoorbeeld minder water bevatten dan warme. Als de lucht afkoelt en de relatieve luchtvochtigheid daardoor boven de 100% komt, condenseert de waterdamp en krijgt men water.
Luchtvochtigheid bij opslag
Relatieve Luchtvochtigheid is de hoeveelheid waterdamp die de lucht bevat in verhouding (in procenten) tot de hoeveelheid water die de lucht bij die temperatuur maximaal zou kunnen bevatten (100%), koude lucht kan bijvoorbeeld minder water bevatten dan warme. Als de lucht afkoelt en de relatieve luchtvochtigheid daardoor boven de 100% komt, condenseert de waterdamp en krijgt men water.
Warmtedissipatie
The heat expressed in British thermal units per hour; generated by the power supply
Gewicht en omvang
Breedte
Diepte
Hoogte
Hoogte van het product
Verpakking
Breedte verpakking
Diepte verpakking
Hoogte verpakking
Gewicht verpakking
Gewicht van het verpakte product in gram.
Logistieke gegevens
Code geharmoniseerd systeem (HS)
