Perfect, Slim-type Managed Switch with More Practicability and Convenience

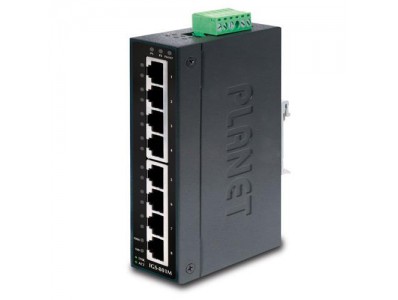

PLANET IGS-801M is an Industrial 8-Port Full Gigabit Managed Ethernet Switch specially designed to transmit reliable but high-speed data in heavy industrial demanding environments. It provides 8-Port 10/100/1000BASE-T copper interfaces delivered in an IP30 rugged strong case with redundant power system. Besides support for 16Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-801M provides user-friendly but advanced IPv6/IPv4 management interfaces and abundant L2/L4 switching functions. It is the best investment for industrial business expanding or upgrading its network infrastructure.
Environmentally Hardened Design
With IP30 industrial case protection, the IGS-801M provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. It also possesses an integrated power supply source with wide range of voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-801M can be placed in almost any difficult environment.
Robust Layer 2 Features
The IGS-801M can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. Via the link aggregation, the IGS-801M allows the operation of a high-speed trunk to combine with multiple ports, and supports fail-over as well. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.
Efficient Traffic Control
The IGS-801M is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice and video solutions. The functionality includes broadcast/multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.
Powerful Security
PLANET IGS-801M offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X port-based user and device authentication, which can be deployed with RADIUS to ensure the port level security and block illegal users. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, port security function allows to limit the number of network devices on a given port.
Advanced Network Security
The IGS-801M also provides DHCP snooping, IP source guard and dynamic ARP inspection functions to prevent IP snooping from attack and discarded ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.
Friendly and Secure Management
For efficient management, the IGS-801M is equipped with web, Telnet and SNMP management interfaces. With the built-in web-based management interface, the IGS-801M offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard SNMP, the switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet. Moreover, the IGS-801M offers secure remote management by supporting SSH, SSL and SNMP v3 connections which encrypt the packet content at each session.
Beheerfuncties
Switch type
Switch-laag
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
ARP-inspectie
Ja
Traffic-classificatie
Ja
System event log
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
Type basis-switching RJ-45 Ethernet-poorten
Aantal Gigabit Ethernet (koper)-poorten
Netwerk
Netwerkstandaard
10G support
Nee
Koperen ethernetbekabelingstechnologie
Port mirroring
Ja
Full duplex
Een full-duplex-systeem staat tweewegcommunicatie toe en - in tegenstelling tot half-duplex, staat toe dat dit gelijktijdig gebeurt.
Ja
Half-duplex
Ja
Auto MDI/MDI-X
Ja
Datastroombeheer
Ja
Broadcast stormbeheer
Ja
Verbindingsaggregatie
Ja
Rate limiting
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Een Virtual Local Area Network (VLAN) bestaat uit een groep eindstations en switches die zich fysiek in één of meerdere netwerken, of zelfs gebouwen, kunnen bevinden, maar toch logisch gezien één enkele gemeenschappelijke LAN vormen.
Ja
Virtuele LAN-functies
Aantal VLANs
Data-uitwisseling
MAC-adrestabel
Het aantal IP-adressen dat het apparaat kan uitgeven.
Switchingcapaciteit
Throughput
Store-and-forward
Ja
Aantal wachtrijen
Jumbo Frames ondersteuning
Ja
Jumbo frames
Beveiliging
Access Control List (ACL)
Ja
IGMP snooping
Ja
MAC adres filtering
Ja
Ondersteunde beveiligingsalgoritmen
Er zijn verschillende manieren om data te versleutelen voordat het verzonden wordt. Over het algemeen geld, hoe meer bits, hoe veiliger.
SSH/SSL support
Ja
Bescherming lus
Ja
BPDU filtering / bescherming
Ja
Authenticatie
Multicast-functies
Multicast-ondersteuning
Ja
Aantal gefilterde multicast-groepen
Protocollen
Beheerprotocollen
Een protocol is een taal of standaard die computers of andere apparatuur gebruiken om met elkaar te communiceren.
Ondersteunde netwerk protocollen
Een protocol is een taal of standaard die computers of andere apparatuur gebruiken om met elkaar te communiceren.
Design
Rack-montage
De mogelijkheden om dit apparaat in een rek te plaatsen of monteren.
Ja
Vormfactor
Eigenschappen van de buitenkant van het product.
Kleur van het product
Materiaal behuizing
Reset button
Ja
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Certificering
Prestatie
Upgraden van firmware mogelijk
Ja
Energie
Stroomverbruik (typisch)
Het vermogen van het apparaat, uitgedrukt in Watts. Typische waardes die fabrikanten geven zijn stroomverbruik indien uitgeschakeld, standby/suspended, typisch gebruik, maximaal gebruik.
Vermogensverbruik (max)
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Power over Ethernet betekent dat het apparaat stroom kan verzenden of ontvangen via de netwerkkabel, zodat bepaalde aangesloten apparatuur geen verbinding met het stopcontact nodig heeft.
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
Temperatuur bij opslag
Relatieve vochtigheid in bedrijf (V-V)
Relatieve Luchtvochtigheid is de hoeveelheid waterdamp die de lucht bevat in verhouding (in procenten) tot de hoeveelheid water die de lucht bij die temperatuur maximaal zou kunnen bevatten (100%), koude lucht kan bijvoorbeeld minder water bevatten dan warme. Als de lucht afkoelt en de relatieve luchtvochtigheid daardoor boven de 100% komt, condenseert de waterdamp en krijgt men water.
Luchtvochtigheid bij opslag
Relatieve Luchtvochtigheid is de hoeveelheid waterdamp die de lucht bevat in verhouding (in procenten) tot de hoeveelheid water die de lucht bij die temperatuur maximaal zou kunnen bevatten (100%), koude lucht kan bijvoorbeeld minder water bevatten dan warme. Als de lucht afkoelt en de relatieve luchtvochtigheid daardoor boven de 100% komt, condenseert de waterdamp en krijgt men water.
Warmtedissipatie
The heat expressed in British thermal units per hour; generated by the power supply
Gewicht en omvang
Breedte
Diepte
Hoogte
Hoogte van het product
Gewicht
Gewicht van het product zonder verpakking (nettogewicht). Zo mogelijk wordt hier het nettogewicht van het product gegeven inclusief standaardaccessoires en -supplies. Fabrikanten stellen soms het gewicht van hun product te rooskleurig voor, door het basisgewicht te geven zonder standaardaccessoires en -supplies.
Logistieke gegevens
Code geharmoniseerd systeem (HS)
Overige specificaties
Klemmenblokpoort
Ja
