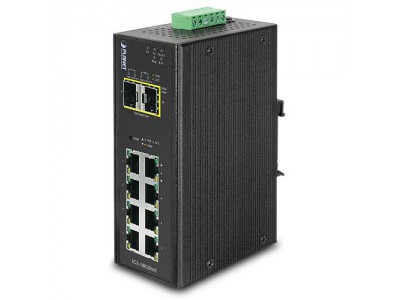

PLANET IGS-10020MT is an Industrial 10-Port Full Gigabit Managed Ethernet Switch specially designed to build a full Gigabit backbone to transmit reliable but high speed data in heavy industrial demanding environments and forward data to remote network through fiber optic. It provides 8-port 10/100/1000Base-T copper and 2 extra 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged strong caiise with redundant power system. Besides support for 20Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-10020MT provides user-friendly but advanced IPv6 / IPv4 management interfaces and abundant L2 / L4 switching functions. It is the best investment for industrial business expanding or upgrading its network infrastructure.
Pv6 / IPv4 Full-functioned Secure Switch for Building Automation Networking
The IGS-10020MT is the ideal solution to fulfilling the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 management functions and can work with original network structure. It provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, and Secure Management features to protect customer’s industrial and building automation network connectivity with reliable switching recovery capability that is suitable for implementing fault tolerant and mesh network architectures.
Redundant Ring, Fast Recovery for Surveillance System
The IGS-10020MT supports redundant ring technology and features strong rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In certain simple Ring network, the recovery time of data link can be as fast as 20 ms.
Environmentally Hardened Design
With IP30 aluminum industrial case protection, the IGS-10020MT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. It also possesses an integrated power supply source with wide range of voltages (12 to 48V DC or 24V AC) for worldwide high availability applications requiring dual or backup power inputs. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-10020MT can be placed in almost any difficult environment.
Flexible and Extendable Solution
The 2 mini-GBIC slots built in the IGS-10020MT support dual-speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The IGS-10020MT supports SFP-DDM(Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
Andere klanten bekeken ook
Eizo EV2495-WT 24.1 " LED 5 ms, 1920 x 1200 pixels€ 612,49Levertijd: 1 tot 4 werkdagen
Hewlett Packard Enterprise Aruba Instant On 1960 2€ 760,99Levertijd: 1 tot 4 werkdagen
Trendnet TI-BG62I€ 576,99Levertijd: 1 tot 4 werkdagen
ZyXEL GS1920-48HPV2€ 675,99Levertijd: 1 tot 4 werkdagen
Beheerfuncties
Switch type
Switch-laag
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
MIB-ondersteuning
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
Type basis-switching RJ-45 Ethernet-poorten
Aantal moduleslots SPF
Netwerk
Netwerkstandaard
10G support
Nee
Koperen ethernetbekabelingstechnologie
Port mirroring
Ja
Full duplex
Een full-duplex-systeem staat tweewegcommunicatie toe en - in tegenstelling tot half-duplex, staat toe dat dit gelijktijdig gebeurt.
Ja
Auto MDI/MDI-X
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Een Virtual Local Area Network (VLAN) bestaat uit een groep eindstations en switches die zich fysiek in één of meerdere netwerken, of zelfs gebouwen, kunnen bevinden, maar toch logisch gezien één enkele gemeenschappelijke LAN vormen.
Ja
Aantal VLANs
Data-uitwisseling
MAC-adrestabel
Het aantal IP-adressen dat het apparaat kan uitgeven.
Switchingcapaciteit
Throughput
Store-and-forward
Ja
Aantal wachtrijen
Jumbo Frames ondersteuning
Ja
Jumbo frames
Beveiliging
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
Er zijn verschillende manieren om data te versleutelen voordat het verzonden wordt. Over het algemeen geld, hoe meer bits, hoe veiliger.
Multicast-functies
Multicast-ondersteuning
Ja
Protocollen
Beheerprotocollen
Een protocol is een taal of standaard die computers of andere apparatuur gebruiken om met elkaar te communiceren.
Design
Rack-montage
De mogelijkheden om dit apparaat in een rek te plaatsen of monteren.
Nee
Kleur van het product
Materiaal behuizing
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Certificering
Prestatie
Upgraden van firmware mogelijk
Ja
Buffergrootte
Energie
Stroomverbruik (typisch)
Het vermogen van het apparaat, uitgedrukt in Watts. Typische waardes die fabrikanten geven zijn stroomverbruik indien uitgeschakeld, standby/suspended, typisch gebruik, maximaal gebruik.
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Power over Ethernet betekent dat het apparaat stroom kan verzenden of ontvangen via de netwerkkabel, zodat bepaalde aangesloten apparatuur geen verbinding met het stopcontact nodig heeft.
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
Temperatuur bij opslag
Relatieve vochtigheid in bedrijf (V-V)
Relatieve Luchtvochtigheid is de hoeveelheid waterdamp die de lucht bevat in verhouding (in procenten) tot de hoeveelheid water die de lucht bij die temperatuur maximaal zou kunnen bevatten (100%), koude lucht kan bijvoorbeeld minder water bevatten dan warme. Als de lucht afkoelt en de relatieve luchtvochtigheid daardoor boven de 100% komt, condenseert de waterdamp en krijgt men water.
Luchtvochtigheid bij opslag
Relatieve Luchtvochtigheid is de hoeveelheid waterdamp die de lucht bevat in verhouding (in procenten) tot de hoeveelheid water die de lucht bij die temperatuur maximaal zou kunnen bevatten (100%), koude lucht kan bijvoorbeeld minder water bevatten dan warme. Als de lucht afkoelt en de relatieve luchtvochtigheid daardoor boven de 100% komt, condenseert de waterdamp en krijgt men water.
Warmtedissipatie
The heat expressed in British thermal units per hour; generated by the power supply
Gewicht en omvang
Breedte
Diepte
Hoogte
Hoogte van het product
Gewicht
Gewicht van het product zonder verpakking (nettogewicht). Zo mogelijk wordt hier het nettogewicht van het product gegeven inclusief standaardaccessoires en -supplies. Fabrikanten stellen soms het gewicht van hun product te rooskleurig voor, door het basisgewicht te geven zonder standaardaccessoires en -supplies.
Logistieke gegevens
Code geharmoniseerd systeem (HS)
