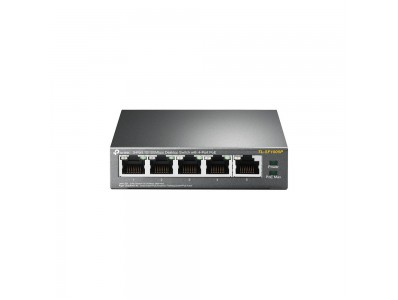

TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power over Ethernet 4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement TL-SF1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 58W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
Easy To Use TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
Beheerfuncties
Switch type
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
Type basis-switching RJ-45 Ethernet-poorten
Netwerk
Netwerkstandaard
10G support
Nee
Koperen ethernetbekabelingstechnologie
Ondersteundende kabel types
Full duplex
Een full-duplex-systeem staat tweewegcommunicatie toe en - in tegenstelling tot half-duplex, staat toe dat dit gelijktijdig gebeurt.
Ja
Half-duplex
Ja
Auto MDI/MDI-X
Ja
Datastroombeheer
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
Data-uitwisseling
MAC-adrestabel
Het aantal IP-adressen dat het apparaat kan uitgeven.
Switchingcapaciteit
Verzending snelheid
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
Design
Rack-montage
De mogelijkheden om dit apparaat in een rek te plaatsen of monteren.
Nee
Stapelbaar
Nee
Kleur van het product
LED-indicatoren
Ja
Prestatie
Maximum kabellengte
Fanloos
Ja
Energie
Stroombron
Vermogenstoevoer inclusief
Nee
AC-ingangsspanning
AC-ingangsfrequentie
DC voltage input
Stroom
Vermogensverbruik (max)
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Power over Ethernet betekent dat het apparaat stroom kan verzenden of ontvangen via de netwerkkabel, zodat bepaalde aangesloten apparatuur geen verbinding met het stopcontact nodig heeft.
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
Totaal Power over Ethernet (PoE)-budget
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
Temperatuur bij opslag
Relatieve vochtigheid in bedrijf (V-V)
Relatieve Luchtvochtigheid is de hoeveelheid waterdamp die de lucht bevat in verhouding (in procenten) tot de hoeveelheid water die de lucht bij die temperatuur maximaal zou kunnen bevatten (100%), koude lucht kan bijvoorbeeld minder water bevatten dan warme. Als de lucht afkoelt en de relatieve luchtvochtigheid daardoor boven de 100% komt, condenseert de waterdamp en krijgt men water.
Luchtvochtigheid bij opslag
Relatieve Luchtvochtigheid is de hoeveelheid waterdamp die de lucht bevat in verhouding (in procenten) tot de hoeveelheid water die de lucht bij die temperatuur maximaal zou kunnen bevatten (100%), koude lucht kan bijvoorbeeld minder water bevatten dan warme. Als de lucht afkoelt en de relatieve luchtvochtigheid daardoor boven de 100% komt, condenseert de waterdamp en krijgt men water.
Warmtedissipatie
The heat expressed in British thermal units per hour; generated by the power supply
Gewicht en omvang
Breedte
Diepte
Hoogte
Hoogte van het product
Duurzaamheid
Duurzaamheidscertificaten
Naleving van duurzaamheid
Ja
Verpakking
Gebruiksaanwijzing
Ja
Inclusief AC adapter
Ja
Type verpakking
Breedte verpakking
Diepte verpakking
Hoogte verpakking
Gewicht verpakking
Gewicht van het verpakte product in gram.
Logistieke gegevens
Code geharmoniseerd systeem (HS)
