Intellinet 561228

Name: intellinet-561228
Brand: Intellinet
SKU: 561228
Price: 91.99 EUR
Availability: InStock

klik om te zoomen

Intellinet 561228 Vergelijk Pc-accessoires> Netwerk> Switches
Merk:	Intellinet
Artikelnr:	1220954
SKU:	561228
EAN:	0766623561228;766623561228
Productgroep:	Switches
Prijs:	€ 91,99
Downloads & links:	Brochure
Voorraad:	Levertijd: 1 tot 4 werkdagen Nu bestelddinsdag verstuurd

Social media:

Beschrijving

Specificaties

Beoordeling

Save installation time and money with PoE.

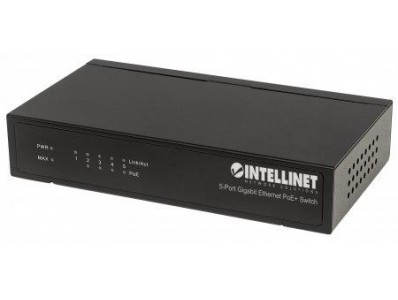

The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports - four of which are high-power PoE+ PSE ports - this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps.

Power over Ethernet 802.3at
The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port.* IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimises the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected.

Green Ethernet Technology
More often than not, a network switch does not utilize all of its ports at all times. Normally, when a computer, notebook, network printer or other network device powers down, the switch continues to consume the same amount of power as if it were active. To overcome this waste of energy, the Intellinet Network Solutions 5-Port Gigabit PoE+ Switch employs the new energy-efficient IEEE 802.3az technology, which detects link status to all connected devices and reduces the power usage of ports that are not in use. To facilitate maximum network performance, the Intellinet Network Solutions switch adjusts power output based on the length of the network cable that is connected to a particular port. When things slow down, it automatically scales back power usage to conserve energy and save money.

* Total PoE budget for this switch is 60 watts. Per-port average power distribution is 15 watts; maximum per-port power usage cannot exceed 30 watts.

- Provides power and data connection for up to four PoE network devices
- Save installation cost by delivering data and power over existing network cables
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
- Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
- Power output up to 30 watts per port
- PoE power budget of 60 watts
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- All RJ45 ports equipped with Auto-MDIX and auto-negotiation support
- Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
- Store and forward switching architecture
- 10 Gbps switch fabric
- Supports jumbo frames up to 9 kBytes
- IEEE 802.3x flow control for full duplex
- Fanless design ideal for silent operation
- Desktop-size metal case
- Three-Year Warranty

Beheerfuncties
Switch type	Unmanaged

Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten	5
Type basis-switching RJ-45 Ethernet-poorten	Gigabit Ethernet (10, 100, 1000

Netwerk
Netwerkstandaard	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Koperen ethernetbekabelingstechnologie	10BASE-T, 100Base-T(X), 1000BASE-T
Auto MDI/MDI-X	Ja
Datastroombeheer	Ja
Auto-negotiation	Ja

Data-uitwisseling
MAC-adrestabel	2000 entries
Switchingcapaciteit	10 Gbit/s
Store-and-forward	Ja
Jumbo Frames ondersteuning	Ja
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffergeheugen	0 MB

Design
Rack-montage	Nee
Kleur van het product	Black
Materiaal behuizing	Metal
LED-indicatoren	Activity, Link, PoE, Power
Certificering	FCC Class B, CE

Energie
Vermogenstoevoer inclusief	Ja
AC-ingangsspanning	100 - 240 V
AC-ingangsfrequentie	50/60 Hz
Vermogensverbruik (max)	70 W
Stroomspanning bescherming	Over voltage, Overload, Short circuit

Power over Ethernet (PoE)
Power over Ethernet (PoE)	Ja
Aantal Power over Ethernet plus (PoE +)-poorten	5
Vermogen per poort Power over Ethernet (PoE)	30 W
Totaal Power over Ethernet (PoE)-budget	60 W

Eisen aan de omgeving
Bedrijfstemperatuur (T-T)	0 - 40 °C
Temperatuur bij opslag	20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)	10 - 90 %

Gewicht en omvang
Breedte	140 mm
Diepte	76 mm
Hoogte Hoogte van het product	27 mm
Gewicht	710 g

Verpakking
Meegeleverde kabels	AC
Snelstartgids	Ja
Rekbevestigingspakket	Ja

Logistieke gegevens
Code geharmoniseerd systeem (HS)	85176990
