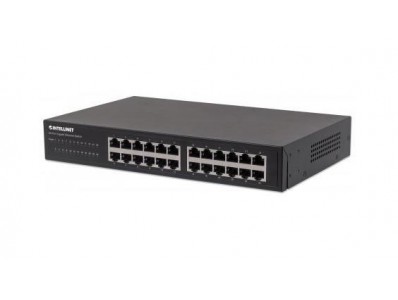

Boost your network speed. _x000D_ _x000D_ The Intellinet Network Solutions 24-Port Gigabit Ethernet Switch (561273) offers an array of features while providing superior network throughput. It is very easy to set up and requires no configuration whatsoever. Thanks to its desktop and 19"; rackmount design, superior performance and value, the Intellinet Network Solutions 24-Port Gigabit Ethernet Switch is the perfect choice for expanding your small office home or home network. _x000D_ _x000D_ Extreme Throughput _x000D_ With a backplane speed of 48 Gbps, plenty of performance is available for your computers, servers and other networking devices. _x000D_ _x000D_ Auto Features _x000D_ This Gigabit LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle-free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the 24 ports automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. _x000D_ _x000D_ Reliable Operation _x000D_ The Intellinet Network Solutions 24-Port Gigabit Ethernet Switch supports flow control when operating in half-duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store-and-forward switching method, full- and half-duplex modes further ensure that your connections remain active even under extremely busy conditions. _x000D_ _x000D_ Green Ethernet Technology _x000D_ More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network-connected device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new, energy efficient IEEE 802.3az technology, the Intellinet Network Solutions 24-Port Gigabit Switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the Intellinet Network Solutions switch can adjust the level of power output based on the length of the network cable connected to a particular port. This feature allows for the enjoyment of maximum network performance, and when things slow down, it automatically scales back power usage to conserve energy and save money.
- 10/100/1000 auto-sensing ports automatically detect optimal network speeds - Auto-MDIX (auto uplink) support for all RJ45 ports - For use on desktop or mounted in standard 19" rack - Supports NWay auto-negotiation - Store and forward switching architecture - Full/half duplex operation - Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode - Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length - Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification - 48 Gbps switch fabric - Supports jumbo frames up to 9 kBytes - Supports 16k MAC address entries - 512 kBytes buffer memory - Supports MAC address auto-learning and auto-aging - Fanless design ideal for silent operation - Includes 19" rackmount brackets - Three-Year warranty
Andere klanten bekeken ook
Intellinet 560917€ 238,99Levertijd: 1 tot 4 werkdagen
Beheerfuncties
Controle en provisioning van draadloze toegangspunten (CAPWAP)
Ja
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten
Type basis-switching RJ-45 Ethernet-poorten
Netstekker
Netwerk
Netwerkstandaard
10G support
Nee
Koperen ethernetbekabelingstechnologie
Ondersteundende kabel types
Full duplex
Een full-duplex-systeem staat tweewegcommunicatie toe en - in tegenstelling tot half-duplex, staat toe dat dit gelijktijdig gebeurt.
Ja
Auto MDI/MDI-X
Ja
Datastroombeheer
Ja
Auto-sensing
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
Data-uitwisseling
MAC-adrestabel
Het aantal IP-adressen dat het apparaat kan uitgeven.
Switchingcapaciteit
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
Packet forwarding rate (1 Gbps)
Packet forwarding rate (100 Mbps)
Packet forwarding rate (10 Mbps)
Packet buffergeheugen
Design
Rack-montage
De mogelijkheden om dit apparaat in een rek te plaatsen of monteren.
Ja
Kleur van het product
Materiaal behuizing
LED-indicatoren
Certificering
Energie
AC-ingangsspanning
AC-ingangsfrequentie
Vermogensverbruik (max)
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Power over Ethernet betekent dat het apparaat stroom kan verzenden of ontvangen via de netwerkkabel, zodat bepaalde aangesloten apparatuur geen verbinding met het stopcontact nodig heeft.
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
Temperatuur bij opslag
Relatieve vochtigheid in bedrijf (V-V)
Relatieve Luchtvochtigheid is de hoeveelheid waterdamp die de lucht bevat in verhouding (in procenten) tot de hoeveelheid water die de lucht bij die temperatuur maximaal zou kunnen bevatten (100%), koude lucht kan bijvoorbeeld minder water bevatten dan warme. Als de lucht afkoelt en de relatieve luchtvochtigheid daardoor boven de 100% komt, condenseert de waterdamp en krijgt men water.
Gewicht en omvang
Breedte
Diepte
Hoogte
Hoogte van het product
Gewicht
Gewicht van het product zonder verpakking (nettogewicht). Zo mogelijk wordt hier het nettogewicht van het product gegeven inclusief standaardaccessoires en -supplies. Fabrikanten stellen soms het gewicht van hun product te rooskleurig voor, door het basisgewicht te geven zonder standaardaccessoires en -supplies.
Verpakking
Meegeleverde kabels
Gebruiksaanwijzing
Ja
Rekbevestigingspakket
Ja
Logistieke gegevens
Code geharmoniseerd systeem (HS)
