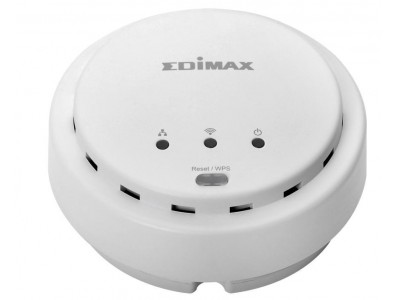

Edimax N300, 300 Mbit/s, 10, 100 Mbit/s, 2.4 - 2.4835 GHz, Ethernet (RJ-45), WPA2-AES, 128-bit WEP, 64-bit WEP, 802.1x RADIUS, SSID, WPA, WPA-TKIP, WPA2, 5 V

klik om te zoomen

Edimax N300, 300 Mbit/s, 10, 100 Mbit/s, 2.4 - 2.4835 GHz, Ethernet (RJ-45), WPA2-AES, 128-bit WEP, 64-bit WEP, 802.1x RADIUS, SSID, WPA, WPA-TKIP, WPA2, 5 V Vergelijk Pc-accessoires> Netwerk> Accesspoints
Merk:	Edimax
Artikelnr:	1085227
SKU:	EW-7428HCN
EAN:	0132017787893;0616268716852;0649659022911;0785307930006;0797045612946;4710700929131;5053959181554
Productgroep:	Accesspoints
Voorraad:	Dit product is niet meer leverbaar.
Social media:

Beschrijving

Specificaties

Beoordeling

- 600mW high power output for superior wireless performance;
- Supports IEEE 802.3af PoE (Power over Ethernet) and alternative external power adapter;
- iQ Setup for automatic and smart setup;
- Multiple operation modes including AP, WDS Point to Point, WDS Point to multiple points, and repeater;
- Up to 5 SSIDs, making it possible to divide clients into different wireless groups with different wireless security settings;
- Scheduling to turn LED and wireless on and off, to reduce power consumption;
- Suitable for home, SOHO, and SMB environments;
- Enhanced wireless coverage up to 10,000 square meters.

300Mbps Max. Wi-Fi Speed
This Edimax wireless access point is a high-speed solution that complies with IEEE 802.11b/g/n standards. The latest wireless MIMO (multiple-input and multiple-output) technology is built into this access point to broaden its Wi-Fi coverage and to eliminate dead spots within the signal range. When it is connected to IEEE 802.11n wireless devices, this Edimax wireless access point can reach Wi-Fi speeds of up to 300Mbps.

600mW High Power Output
The EW-7428HCn’s massive power output provides a colossal Wi-Fi range of up to 10,000 square meters – ideal for vast environments such as airports, hotels, schools or warehouses.

WDS Bridge Mode (Repeater Mode)
The WDS (Wireless Distributed System) function let this access point acts as a wireless LAN access point and repeater at the same time. Users can use this feature to build up a large wireless network in a large space like airports, hotels and schools . This feature is also useful when users want to bridge networks between buildings when it is impossible to deploy network cable connections between these buildings.

Wi-Fi Protected Setup (WPS) Button
The Edimax EW-7428HCn features a convenient WPS button. Users can set up an encrypted wireless connection simply by pressing the WPS button on this access point and the client device. This one-press WPS button helps users set up a secure wireless network in less than a minute.

Optional Power Supply
The Edimax EW-7428HCn integrates a PoE PD module, and also provides a power jack for a regular power adapter. Users can connect the access point to either a PoE Switch or a power adapter for the power supply.

Designed with the Latest Green WLAN Technology
With the latest green WLAN technology, the EW-7428HCn is able to dynamically adjust its power supply according to the amount of network activity. By supplying only the amount of power needed, this router allows for high networking performance while maintaining minimum power consumption.

User Group Management
Up to 5 SSIDs, making it possible to divide clients into different wireless user groups with different wireless security settings.

iQ Setup: No CD Required
iQ Setup is an intelligent feature that ensures a quick and headache-free setup process. You can choose the operation mode according to your needs and complete setup in just a few minutes. User can easily complete the installation without the software CD. This is useful when users are using ultra-compact laptops without the CD/DVD drives.

Network Applications
Designed to be conveniently ceiling mounted: The ceiling mounted access can be mounted on office ceilings and easily blends in home and business environments.

Prestatie
Overdrachtssnelheid (max)	300 Mbit/s
Ethernet LAN, data-overdrachtsnelheden	10, 100 Mbit/s
2,4 GHz	Ja
Frequentieband	2.4 - 2.4835 GHz
Netwerkstandaard	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Quality of Service (QoS)	Ja
Certificering	FCC, CE

Poorten & interfaces
Aansluiting voor netstroomadapter	Ja
WAN-poort	Ethernet (RJ-45)

Beveiliging
Ondersteunde beveiligingsalgoritmen	WPA2-AES, 128-bit WEP, 64-bit WEP, 802.1x RADIUS, SSID, WPA, WPA-TKIP, WPA2
MAC adres filtering	Ja

Antenne
Antennas quantity	2

Energie
Ingangsspanning	5 V
Stroom	2 A

Design
Intern	Ja
LED-indicatoren	Power

Gewicht en omvang
Afmetingen (BxDxH)	105 x 105 x 46 mm

Inhoud van de verpakking
Inclusief AC adapter	Ja

Overige specificaties
Overdrachtssnelheid	0 Gbit/s
Netwerkfuncties	Fast Ethernet
Draadloze technologie	802.11b, g, N
